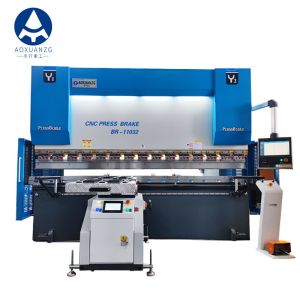

100T Hydraulic CNC Press Brake With Automatic Bracket

    Buy cheap 100T Hydraulic CNC Press Brake With Automatic Bracket from wholesalers

    Buy cheap 100T Hydraulic CNC Press Brake With Automatic Bracket from wholesalers
    • Buy cheap 100T Hydraulic CNC Press Brake With Automatic Bracket from wholesalers
    • Buy cheap 100T Hydraulic CNC Press Brake With Automatic Bracket from wholesalers

    100T Hydraulic CNC Press Brake With Automatic Bracket

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : BR-10032
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 50sets/Year
    Delivery Time : 20-30 days
    Price : $67350-85520/unite
    • Product Details
    • Company Profile

    100T Hydraulic CNC Press Brake With Automatic Bracket

    CNC Full Automatic Hydraulic Press Brake Bending Folding Machine With Automatic Bracket
    MAIN FEATURE:
    1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
    2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
    3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
    4. Travel limit protection, full machine guarding with safety interlocker.
    5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
    6. The stroke and distance of the back gauge is adjusted by the motor.
    7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
    8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
    9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
    10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T,Laimore EL15T.

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150


    Details:


    Main Configuration
    Laimore EL15T CNC Controller
    Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
    Front supporter bracket
    Germany Bosch Rexroth hydraulic valve block
    Germany EMB oil tube connector
    Germany Siemens main motor
    France Schneider electrics
    Hydraulic & electrical overload protection

    Automatic Mechanical compensation
    Upper and lower dies(86°, R0.6mm, material: 42CrMo)


    Safety Equipment:
    Safety Standards(2006/42/EC)
    1. EN 12622:2009+a1:2003
    2. EN ISO 12100:20110
    3. EN 60204-1:2006+A1:2009


    Kacon pedal switch
    South Korea KACON pedal switch, improving the service life and operational sensitivity

    Main servo motor
    Power saving


    Automatic Bracket

    Fully automatic, more high-end, save time and labor!



    Ball Screw & Guide LinearBall
    Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when workingAdopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working


    For more information, please contact me (^o^)/~
