12904 16903 White And Blue Polyester Sludge Dewatering Belt Acid
And Alkali Resistance Long Working Time

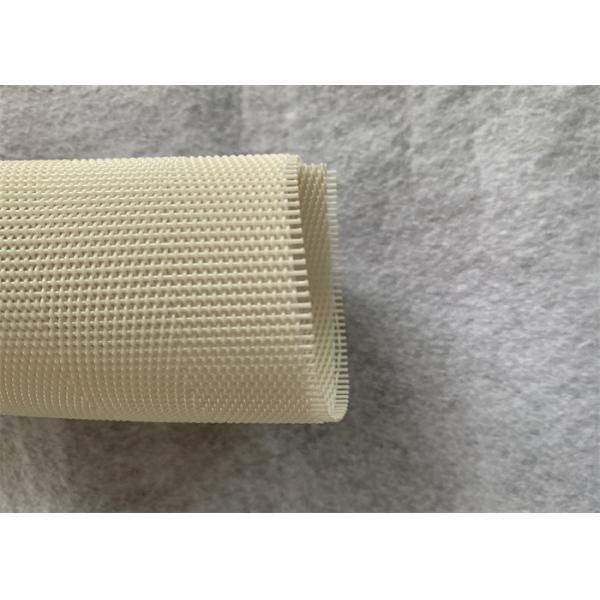

Polyester Sludge Dewatering Belt Product Introduction
Sludge dewatering fabric is mainly used for sludge de hydration in
sewage treatment factories
They have the characteristics of good water permeability, air
permeability and non-revealed sludge
acid-resisting, alkali-resisting, heat resistance (180°C) .Because
of their designing structure, the sludge
can be peeled off easily after pigeonhole filter, so the screen are
easily cleaned and have a long working time
Therefore they are designed specially for sludge dehydration
| No | Thread diameter | Density (per/cm) | Strength (N/cm) | Water permeablility S/5L | Weight Kg/m2 | Thickness
mm | Gas permeability
m3/m2h |
| Warp | Weft | Warp | Weft | Surface | Jointing |
| 2470 | 0.05 | 0.70 | 24 | 9 | 2000 | 900 | 56.4 | 1.23 | 1.90 | 6130 |
| 27708 | 0.05 | 0.70 | 28 | 8.5 | 2100 | 900 | 63 | 1.53 | 2.21 | 4120 |
| 22903 | 0.05 | 0.90 | 23 | 5.5 | 2000 | 900 | 48 | 1.40 | 1.90 | 6800 |
| 16903 | 0.70 | 0.90 | 17 | 4.5 | 2200 | 900 | 38.6 | 1.70 | 2.0 | 7920 |
| 121103 | 0.90 | 1.10 | 12.5 | 3.8 | 3600 | 900 | 32.4 | 1.60 | 2.60 | 8610 |
| 26808 | 0.05 | 0.80 | 27 | 8.5 | 2100 | 900 | 60.3 | 1.54 | 2.20 | 5120 |
Polyester Sludge Dewatering Belt Product Introduction Description
1Polyester Sludge dehydration mesh belt have the characteristics of
good water permeability
2 air permeability and non-revealed sludge, acid-resisting and
alkali-resisting
3 Because of their designing structure, the sludge can be peel off
easily from the filter cake
4 so the screen are easily cleaned and have a long working time
5 Mainly matching with belt type filter press vacuum rubber belt
filter and vacuum horizontal belt filter
| Features: | Non-revealed Sludge | Name: | 2021 New Design White And Red Reusable Hand-Woven 100% Polyester
Polyester Sludge Dewatering Belt For Fruit Squeeze |
|---|
| Color:: | White Blue And Black | Size:: | 0.1-30m Long |
|---|
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
|---|
| Packing:: | Simple Packing | Durability: | Repeatable Application |
|---|
| High Light: | 0.1-50m long sludge dewatering belt,sludge dewatering belt acid
resistant,0.1-50m long dewatering belt |
|---|
Polyester Sludge Dewatering Belt Product Introduction Advantage
- Acid-resisting alkali-resisting heat resistance(180 °C)
- so the screen are easily cleaned and have a long working time
- Therefore they are designed specially for sludge dehydration
- To make the culture paper, printing paper, and packing paper
- Filled or unfilled to achieve different filtration characteristics
- Adhesive edges for lasting, economical solutions
How to choose Polyester Sludge Dewatering Belt
polyester filter belt is widely used inMineral industry -mining
sieving, mineral separation gold benefication
Paper industry-paper pulps making, sulplate pulppacking and
cardboard pulp
Dryer -Textile yarn,Others -tailings disposal, colliery, food,
medicine etc
Polyester Sludge Dewatering Belt Packing detail
| We always use poly bag for the goods which ship by air, so that
customer can save freight free |
| Wooden case is the best for ocean shipment because it can effective
avoid the damage during shipping |
| There also have some customer request us to use the carton to
packing their goods |
| We can according to customer's requirement |
