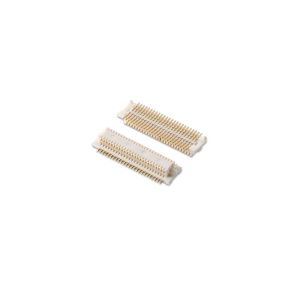

Board to board connector pitch0.5mm 2x25P SMT for pcb board
TV&LED control car
Ideal for compact applications in the automotive, industrial,
medical and mobile device industries, SlimStack Board-to-Board
Connectors offer a wide selection of low-profile, narrow width
options in various mated heights and circuit sizes.
1. Positions: 2x2 pins-2x50pins available
2. Pitch: 0.5mm
Pitch 0.5mm/0.8mm/1.0mm/1.25mm/2.0mm/2.54mm available.
3. Current rating: 1.5A
4. Insulation-resistance: 1000MΩ min
5. Dielectric withstanding voltage: 500V AC
6. Contact-resistance: 20mΩ max
7. Operating temperature: -40 to + 105°C
8. Insulation material: LCP+30%GF UL94V0
9. Contact material: copper
10. Plating: nickel+Au
11. Maximum processing temperature: 260°C
12. Insertion force: 80 to 200g
13. Withdrawal force: 70 to 200g
14. Mechanical life/durability:
15. Packing: tube, tray, plastic bag, tape and reel optional
16. Carton size: customized
17. Carton quantity: customized
18. Carton weight: customized
19. Free sample available
20. 100% tested before shipment
21. Payment terms: T/T, Western Union, L/C, MoneyGram, PayPal, cash
22. Shipping ways: FedEx, DHL, UPS, TNT, air, sea
23. Delivery lead-time: within 5-30 days, depends on order quantity
24. We are professional manufacturer majoring in the board to board
connectors, wire to board connector, pin header, female header, box
header, ejector header, wafer, FFC, FPC, D-sub, USB, RJ45, SD card,
SIM card, IC socket, terminal block, jumper cap, cables
25. OEM/ODM/customized products are welcome
26. If any questions, feel free to contact us.
Product Application
The thin spacing board to board connector is an optimized
interconnection solution, which is suitable for smaller and thinner
electronic consumer products. These connectors can cope with the
trend of miniaturization in the market. The product line has
smaller pin spacing, narrower body and lower socket height, as well
as various advantages.
Vertical mounting plate to plate signal connector, with compact
space saving design and high contact density. These SMC stacked
signal connectors provide high performance, high signal integrity
and reliability. The contacts of these SMC high-speed sandwich
signal connectors provide continuous impedance profiles for high
transmission rates up to 3 Gbit/s. The contact is designed with a
super reliable double beam, which can provide low resistance and
achieve high electrical performance.
