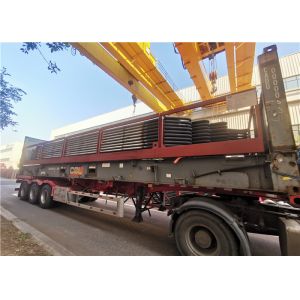

    ASME Standard 60mm Convection Superheater Coil For Boiler Maintaince

    Ask Lasest Price
    Brand Name : HD Boiler
    Model Number : Superheater coil 07012
    Certification : ASME, SGS, ISO9001, EN
    Price : 2,000 - 5,000 USD per pc
    Payment Terms : T/T, L/C at sight
    Supply Ability : About 1,000 tons per month
    Delivery Time : Within 90 Days after getting the down payment or L/C
    • Product Details
    • Company Profile

    ASME Standard 60mm Convection Superheater Coil For Boiler Maintaince


    ASME Standard Superheater Coil For Boiler Maintenance Stainless steel


    Details: Superheater coil



    The outer diameter of the pipe is generally 30 ~ 60 mm.The most common type of superheater is the serpentine tube.It has a relatively dense tube set, arranged in the flue gas temperature of 450 ~ 1000℃, by the transverse and longitudinal erosion of flue gas.The flue gas mainly transfers heat to the pipe by convection, and some radiation absorbs heat.Screen type superheater consists of a plurality of tube screen, arranged in the upper part of the furnace or the outlet, belongs to the radiation or semi-radiation superheater.The former absorbs the radiant heat of the furnace flame, while the latter absorbs part of the convective heat.In the power station boiler above 10 mpa, generally both screen type and serpentine tube type superheater are used to increase heat absorption.The wall superheater applied to the inner wall of the furnace is the radiant superheater, which is seldom used.Wall type superheater is used in large capacity power station boiler to form the wall of the furnace roof and convection flue, and the insulation material is applied outside to form the light furnace wall.


    Superheater tube wall metal in the boiler pressure parts under the highest temperature, so must use high quality low carbon steel and various chromium molybdenum alloy steel, in the highest temperature part sometimes also use austenitic chromium nickel stainless steel. In boiler operation, if the temperature of the pipeline exceeds the allowable temperature limit of the material's durable strength, fatigue strength or surface oxidation, the pipeline burst will occur.


    Differences


    TypeAdvantagesDisadvantagesSupporting method
    Pendant-type1.Firm structural support1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom.supported from above
    Inverted-type1.Proper drainage of the condensed steam1. Lack the structural rigidity, especially in high speed gas flowSupported from below
    Horizontal -type

    1. Proper drainage

    2. Good structural rigidity.

    1. They do not view the flam directly so they are mainly from the convective typeUsually supported in the vertical gas ducts parallel to the main furnace.


    Principle


    • Principle of superheater is similar to steam generating tubes of boiler.

    The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.

    Application


    Use for heating saturated steam, steam temperature could be up to 900 degree C.

    Superheater Capacity Upgrades to Increase Power Generation


    Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
