9000L/H Degassing Protable Precision Lubrication Oil Purifier For
Power Plant

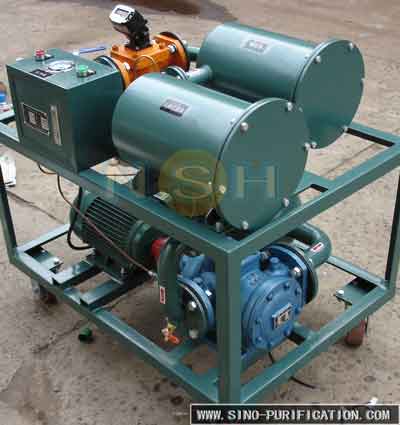

9000L/H Protable Precision Lubrication Oil Purifier
Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter,
oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed
to reduce the resistance, speed up the rotation, and increase the
oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long
continuous working time, stable performance, easy to operate.
9000L/H Protable Precision Lubrication Oil Purifier Usage:
1.It can be used for oil filtering and oil filling on site for all
kinds of oil-immersed transformer oil-immersed current and voltage
transformer and high-voltage oil-less circuit breaker.
2. It can be used for hot oil cycle drying on site for the above
equipment, especially for hot oil cycle drying on site for
oil-immersed current and voltage transformer and high-voltage
oil-less circuit breaker
3. It can also be used for the regeneration and purification of
mildly deteriorated transformer oil, so that its performance
reaches the qualified oil standard.
4. It can also be used in power plant, power station, power
company, transformation industry, metallurgy, petrochemical
machinery, transportation and railway industries
Other Models Purifier Machines:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with
thermal and vacuum processing,it's ideal for filtration and
dehydration of turbine oil, this unit can extend turbine oil life
by removing contaminates from oil, such as water, gas and
particulates, improve the oil properties. |
| LV Series: |
| LV series oil filter is a dehydration and degassing unit with
thermal and vacuum processing, it's a multifunctional purifier
which can treat various kinds of lubricant oils. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and
vacuum processing, it's mainly used to improve the properties of
phosphate ester fire-resistent oil in generator set. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality. |
9000L/H Protable Precision Lubrication Oil Purifier Technical Parameters:
| Parameter | Value |
| PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 |
| Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 |
| Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Power supply | Fully Customizable |
| Height, m | ≥15 |
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 |
| Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 |
| Processed Oil Spec | Cleaness NAS(1638) | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions
for unique request and practical usage. It could be special
demension request, special structure adoption, unusual using
condition demand, or exact performance requirement. Sino-NSH
professional technical group and crafted skill man ensure every
Sino-NSH system is custom engineering and design that exceed your
expectation.
Ps: we accept customization, welcome to inquiry!!!
