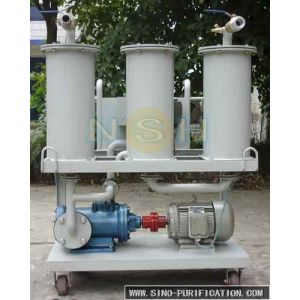

1.5kw 4800L/H Dehydration Degassing Protable Precision Lubrication
Oil Purifier
1.5kw 4800L/H Protable Precision Lubrication Oil Purifier
Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter,
oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed
to reduce the resistance, speed up the rotation, and increase the
oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long
continuous working time, stable performance, easy to operate.
Function:
It can to increase special indexes of insulation oil through remove
dissolved and free water, dissolved gas and particulate impurities
effectively.Oil purification is a vital undertaking that helps in
the maintenance of machines.
1.5kw 4800L/H Protable Precision Lubrication Oil Purifier Technical Description:
Sino-NSH-PF is a portable multi-stage high precision oil
purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities.
Because of flexibility and portability, it is widely usd in the
fields of power tation, petrochemical industry, metallurgy,
mechanical engineering etc. for oil filling, oil pumping as well as
high precision purifying and pipe cleaning.
1.5kw 4800L/H Protable Precision Lubrication Oil Purifier Technical Parameters:
| Parameter | Value |
| PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 |
| Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 |
| Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Power supply | Fully Customizable |
| Height, m | ≥15 |
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 |
| Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 |
| Processed Oil Spec | Cleaness NAS(1638) | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil
Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Filter maintenance:
1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the
filter element, at the same time empty the shell visceral oil,
clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies
Other Models Oil Purifier:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with
thermal and vacuum processing,it's ideal for filtration and
dehydration of turbine oil, this unit can extend turbine oil life
by removing contaminates from oil, such as water, gas and
particulates, improve the oil properties. |
| LV Series: |
| LV series oil filter is a dehydration and degassing unit with
thermal and vacuum processing, it's a multifunctional purifier
which can treat various kinds of lubricant oils. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and
vacuum processing, it's mainly used to improve the properties of
phosphate ester fire-resistent oil in generator set. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used
internal-combustion engine oil including diesel engine oil,
gasoline engine oil, and used hydraulic oil, other used lubrication
oil of machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or
diesel oil with high quality. |
Package & Delivery:
Ps: we accept customization, welcome to inquiry!!!
