    CuZn M12 Panel Mounted Connectors 0.5A TPU Welding Wire Rear Lock X Coding

    Ask Lasest Price
    Brand Name : Rigoal connector(RG)
    Model Number : M12
    Certification : CE , Rohs , IP68
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 30work day
    • Product Details
    • Company Profile

    CuZn M12 Panel Mounted Connectors 0.5A TPU Welding Wire Rear Lock X Coding

    • M12 Circular connector according to IEC 61076-2-109
    • M12 circular connector with M12*1.0 screw locking
    • Equivalent to Binder, Phoenix, Lumburger automation...
    • Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical

    • Circular metal waterproof M12 X Coding (code) industrial Ethernet connector/cable

    • M12 X coded panel mounted with PCB hole welding needle X coding type connector.Protection grade reaches IP67 / IP68 dust
    waterproof standard.Can be used with ultra-high speed CAT6A industrial Ethernet connection

    Generally Description:

    Connector Series: M12
    Standard: IEC 61076-2-109
    Coding: X
    Gender: Male and Female
    Connector Design: Customized
    Connector Locking System: Fix screw
    Waterproof Rating: IP67/IP68
    Normal Temperature: -10℃~+80℃

    Material:

    Connector Body: TPU
    Male Contacts: Brass with gold plated
    Female Contacts: Phosphorus copper with gold plated
    Screw/Nut: Brass with nickel plated
    Waterproof 0-ring: FKM
    Glue: Black epoxy resin

    Electrical data:

    Contact Resistance: ≤10mΩ
    Insulation Resistance: ≥100MΩ
    Rated Current: 0.5A
    Rated Voltage: 50V~60V

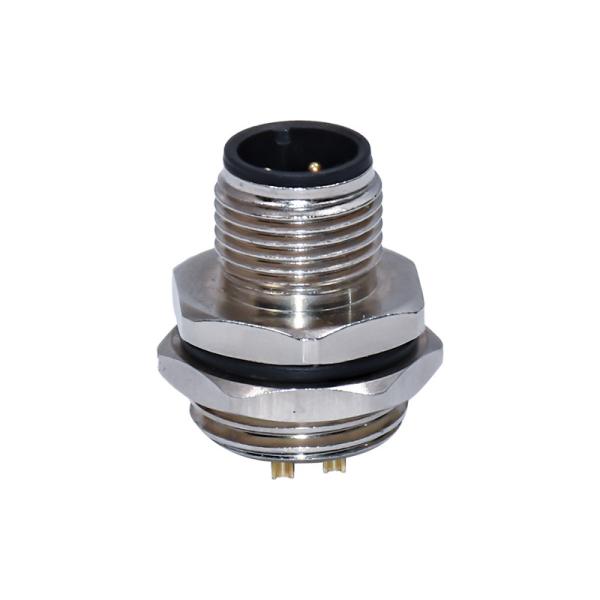

    Quality CuZn M12 Panel Mounted Connectors 0.5A TPU Welding Wire Rear Lock X Coding for sale
