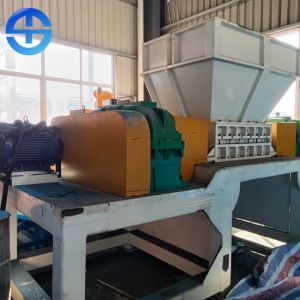

2*22kw Power 2-3 Ton/H Intelligent Dual Shaft Shredder
Introduction of dual shaft shredder
Dual shaft shredder can meet the requirements of waste recycling in
various industries, and is suitable for shredding thicker and
refractory materials, such as electronic waste, plastics, metals,
wood, waste rubber, packaging barrels, pallets, etc. There are many
kinds of recyclable materials. The torn materials can be directly
recycled or further refined according to demand. It is suitable for
industrial waste recycling, medical treatment recycling, electronic
manufacturing, pallet manufacturing, wood processing, domestic
waste recycling, plastic recycling, tire recycling, paper making
and other industries. This series of double shaft crusher has the
characteristics of low speed, high torque and low noise. It adopts
PLC control system and can be automatically controlled. It has the
functions of starting, stopping, reversing and overloading
automatic reversing control.
Technical paramater of dual shaft shredder
| Model | TMS-800 |
| Power | 22kw*2 |
| Voltage | 380v/50hz |
| Capacity | 2-3ton/h |
| Speed | 50 r/min |
| Size | 3100*1500*1800 mm |
| Weight | 4500 kg |
Features of metal shredding machine
1. This machine can shred large block, basket, pipe, board, wood,
tire and large roll film which are difficult to crush by single
shredder.
2. Extra thick sheet metal precision processing composite structure
frame, large angle hexagonal column strong rotation axis, large
caliber and strong input hopper, so you can safely put into large
raw materials.
3. In the thickness, shape, arrangement and other aspects of the
design and processing of a unique rotary knife, strong shearing
force, sharp edge, can be highly efficient crushing.
4. PLC control, when the handling material is too large, it has the
function of positive and negative operation and shutdown to protect
the body, and the safety measures are absolutely safe.
5. Low-speed operation, low noise, less dust.
6. The blade is made of special alloy steel and is durable.
Working principle of dual shaft shredder
The double shaft crusher is driven independently by two shaft, so
that the material can be pressed correspondingly in production to
achieve the function of automatic feeding. Unique shaft structure
and four-corner rotary blades will not entangle the shaft or jam
the equipment in the production process of low speed and high
torque, thus improving the production efficiency. This equipment is
suitable for crushing various materials with high toughness and
viscidity.
Application of dual shaft shredder
The items that can be torn up by metal shredding machine are
(1). Wood processing industry: wooden pallets, branches, seats,
wood, roots; Wisconsin environmental protection.
(2). Plastic products industry: mixed plastics, plastic buckets,
rubber blocks, nozzle materials, garbage cans.
(3). Waste tire industry: automobile tires, tires with rough steel
wire removed, rubber.
(4). Metal recovery industry: scrap iron and steel, lead, aluminum
alloy, copper scrap.
(5). Electronic waste industry: electronic appliances, plugs,
transformers, air conditioners, induction cookers, television.
