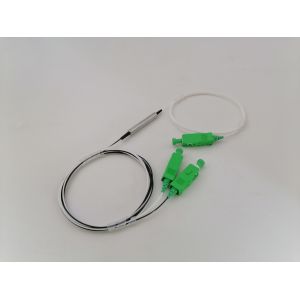

1550nm Polarization Beam Combiner PBC PBS PM SMF Fiber Aligned To Slow Axis

The Polarization Beam Combiner/Splitter is a micro-optic device that can combine two polarized light signals into one output fiber, or split one light into two polarized outputs with their polarization states orthogonal to each other. The typical configuration of PBC uses the two PM fiber for input and the SM fiber for output.

Performance Specifications

1.The PM fiber and the connector key are aligned to the slow axis.

2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.

3.The above specifications are for device without connector.
