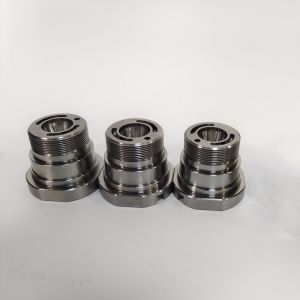

Precision CNC Lathing Mould Core Insert With Thread For Drip Plastic Bottle Mold Parts

High Flatness Precision CNC Lathing Mould Core Insert With Thread For Drip Plastic Bottle Mold Parts

The Description Of Core Insert

When we manufacture the mold core insert and cavity inserts during the mold manufacturing, there are some dimensions that we need to manufacture with some tolerances so that it fits well in the pocket of the core insert plate or mold cavity/core

And this will save some work when we will fit the mould cavity & core insert, high tolerance, and good manufacturing technology will save lots of time for the mold-master, below are some manufacturing mold core insert /cavity insert Guideline that we need to pay attention to make high quality plastic mold

When we make the corner radius In the manual milling machine, make a 0.2mm big step there, after hardening, we don’t have to grind on the corner when we fit the core insert

For the outside dimension of the mold cavity/core Inserts, the tolerance should be +0/-0.015mm, this will be easy fit into the pocket, smooth and good quality

The tolerance for the hole to the sprue bushing should be H7 (0/+0.015mm)

The depth of the treading should be 1.5-2 multiply by the diameter of the tread. In this case for M8 screw, the depth of the treading should be 1.5 to 2 multiply by 8, equal to 12-16mm

The guidance of the ejector pin should be about 15-20mm long, this will make sure that the ejector pins ejecting smoothly with long lifetime

The clearance area for the ejector pins should be 1mm bigger than the diameter of the ejector pins., please see below illustration with explaining

Specification:

Packing:

Inter pack with plastic box, 20 pcs in a plastic box
Outer pack with carton or accoring to client's requirements

Shipping:

1. EXW, CIF are acceptable.
2. Courier like DHL,UPS , TNT,Fedex,EMS are acceptable.
3. Air cargo and sea are acceptable.
4. The products can be shipped in 24 hours if in stock, out of stock needs 3-7 days or based on the quantities.

Payment:

1. T/T and L/C are acceptable for mass order.
2. Paypal and Western Union are acceptable for small order.
3. ESCROW is acceptable for small and mass order.

FAQ:

Q1: Are You Trading Company Or Manufacturer ?
A: We are a tool manufacturer specialized in customized injection molds, mold components, plastic products for foreign markets

Q2: Which Kind Information Need For Quotation ?
A: 1. Product 2D / 3D drawing 2.Product material 3.Cavitation 4. Runner type : cold or hot 5. Mould steel type 6. Mould trial and sample quantity 7. Other special requirements

Q3: I Have A Sample But Dont Have Drawing , What Can I Do ?
A: Please send us some photos of the sample . and you can send us sample and tell us your idea we will help to finish the 3D drawing design

Q4: Can You Produce If I Have A Drawing ?
A: Please send your drawing to our sales representative, then all the information will be forwarded to our engineer and they will evaluate it, a detailed proposal will be advised within 24 hours

Q5: How Do We Control The Mold Processing ?
A: We will send the process report and mold processing pictures every week to the customer

Q6: What Is Your Lead Time ?
A: For injection mold, generally it is 28-60 days as the products structure is different so the leadtime will also be different for injection molding parts, 5-10 days for small order, if more we willscuss

Q7: Didn't Find The Answer You Were Looking For ?
A: Please contact us today with your questions and a team member will get back to you as soon as possible
