    K30 Cemented Tungsten Carbide Bars With Good Hardness And Toughness

    Ask Lasest Price
    Brand Name : JINXING
    Model Number : K30 Tungsten Carbide Bars
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 2000 kg per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    K30 Cemented Tungsten Carbide Bars With Good Hardness And Toughness

    K30 Cemented Tungsten Carbide Bars With Good Hardness And Toughness

    Tungsten carbide bars can be divided into tungsten steel rods for PCB tools, solid tungsten carbide bars, single straight hole tungsten steel rods, double straight hole tungsten steel rods, double spiral hole tungsten steel rods, three spiral hole tungsten steel rods, etc. Rod; According to the molding process, it can be divided into extrusion molding and molding molding. The difference is that the extruded rod has a beautiful appearance and is easy to grind; the advantage of the molded rod is that the density is relatively uniform, but it is not conducive to grinding.


    Specification Table of tungsten carbide bar

    WC bar / rodDiameterLength
    TypeSize (mm)Tolerance (mm)Size (mm)Tolerance (mm)
    JX040-504+0.2~0.4501
    JX050-505+0.2~0.4501
    JX060-506+0.2~0.4501
    JX060-606+0.2~0.4601
    JX080-608+0.2~0.4601
    JX100-7510+0.2~0.4751.5
    JX100-10010+0.2~0.41002
    JX120-7512+0.2~0.4751.5
    JX120-10012+0.2~0.41002
    JX140-10014+0.3~0.51002
    JX160-10016+0.3~0.51002
    JX200-10020+0.3~0.51002

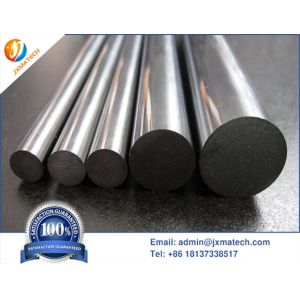

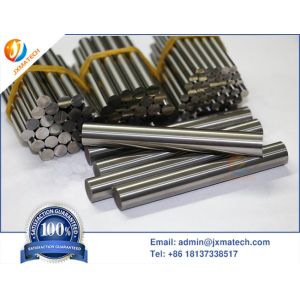

    Tungsten Carbide Rods Picture:

    Processing of tungsten carbide bars

    • Cemented carbide may be damaged or defective due to impact or excessive processing load.
    • During the processing, please confirm that the product has been firmly fixed on the installation platform before operation, and there is no looseness.
    • Cemented carbide is not impact resistant. Do not use metal hammers.
    • Cemented carbide is not easy to be adsorbed on the magnet. When using a magnet (magnet), please make sure that the product is firmly fixed before operation.
    • The machined surface after grinding is very smooth and the edges and corners are very sharp. Please be careful when taking processed products.

    Application of tunsten carbide bars

    Tungsten carbide bars are a kind of ultra-fine particle tungsten steel material. This tungsten steel bar has the characteristics of high hardness, good bending strength, wear resistance, not easy to collapse, and not easy to break. It is a special material for micro-drills and is widely used in tungsten steel milling cutters, engraving knives and wear-resistant parts.

    Quality K30 Cemented Tungsten Carbide Bars With Good Hardness And Toughness for sale
