FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm

    Buy cheap FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm from wholesalers

    Buy cheap FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm from wholesalers
    • Buy cheap FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm from wholesalers
    • Buy cheap FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm from wholesalers
    • Buy cheap FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm from wholesalers

    FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : FeCr20Al5
    Certification : ISO9001 SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Tons per month
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    FeCrAl Electric Resistance Wire Anti Oxidation Diameter 8.0mm

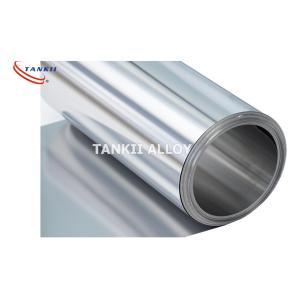

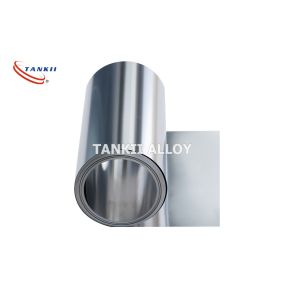

    Cral 20-5 0.06*80mm FeCrAl Fe-Cr-Al Heating Resistance Alloy Foil for Electric Oven​


    1. Description
    With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in industrial electric furnace, household electrical appliance and Far infrared ray device.

    2. Specification
    Wire:
    Diameter: 0.15mm-8.0mm
    Strip:
    Thickness: 0.6mm-3.0mm
    Width: 5mm-250mm


    3. Usage
    It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

    4. Features
    Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

    5. Packing detail
    1) Coil (plastic spool) + compressed ply-wooden case + pallet
    2) Coil (plastic spool) + carton + pallet

    6. Products and services
    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Stable properties in high temperature;
    5). Fast delivery;

    CPSMnSiCrNiAlFeOther
    Max
    0.050.0250.0250.70Max 0.621.0~23.0Max 0.605.0~7.0Bal.Nb 0.5

    Mechanical Properties

    Max Continuous Service Temp1350ºC
    Resisivity at 20ºC1.45 ohm mm2/m
    Density7.1 g/cm3
    Thermal Conductivity46.1 KJ/m·h·ºC
    Coefficient of Thermal Expansion16.0×10-6/ºC
    Melting Point1510ºC
    Tensile Strength637~784 Mpa
    ElongationMin 12%
    Section Variation Shrink Rate65~75%
    Repeatedly Bend FrequencyMin 5 times
    Continuous Service Time-
    Hardness200-260HB
    Micrographic StructureFerrite
    Magnetic PropertyMagnetic



    Temperature Factor of Electrical Resistivity

    20ºC100ºC200ºC300ºC400ºC500ºC600ºC700ºC800ºC900ºC1000ºC1100ºC1200ºC
    10.9970.9960.9940.9910.9900.9900.9900.9900.9900.9900.9900.990
