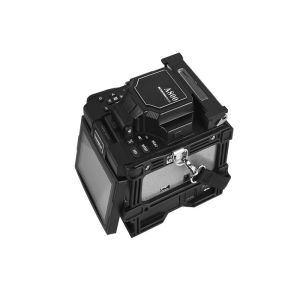

    Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion

    Ask Lasest Price
    Brand Name : Hicorpwell
    Model Number : HCW-A800
    Certification : ISO9001
    Price : 350-790 USD per set
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion

    Automatic Core to Core Signal Fire Optical Fiber Equipment 6 Seconds Motor Arc Japan Splicing Machine C10 Fusion
    Product Specification
    Applicable fiber
    SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
    Diameter of cladding
    80 -150μm
    Diameter of coating
    160 – 900μm
    Typical splice loss
    SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
    Return loss
    >60db
    Fiber cleaved length
    10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
    Splicing program
    40 groups
    Operate mode
    Manual, Automatic
    Auto-heating
    Available
    Typical splicing time
    6 seconds
    Tube heating time
    20 seconds for 60mm and 40mm shrinkable sleeves
    Fiber view magnification
    250X(X or Y view), 125X(X and Y view)
    Viewing method and display
    2 CMOS cameras, 4.3 inch color LCD monitor
    Storage of splice result
    4000 results
    Loss evaluation
    Available
    Tension test
    1.8-2.2N
    Interface
    GUI menu interface, easier operation
    Battery capacity
    5200mAh Li-battery, typical 250 cycles(splice and tube heat)
    Power supply
    Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life
    More than 4000 ARC discharges, can be replaced conveniently
    Terminals
    USB 2.0 port, for uploading splice results and upgrading software
    Operating condition
    Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
    Dimension
    160mm(L)x136mm(W)x140mm(H)
    Weight
    2.10kg including battery
    Package
    Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg
