4mm² 100m DC1.8KV Single Core Solar Cable Red Black

    Buy cheap 4mm² 100m DC1.8KV Single Core Solar Cable Red Black from wholesalers

    Buy cheap 4mm² 100m DC1.8KV Single Core Solar Cable Red Black from wholesalers
    • Buy cheap 4mm² 100m DC1.8KV Single Core Solar Cable Red Black from wholesalers
    • Buy cheap 4mm² 100m DC1.8KV Single Core Solar Cable Red Black from wholesalers

    4mm² 100m DC1.8KV Single Core Solar Cable Red Black

    Ask Lasest Price
    Brand Name :
    Model Number : PV1-F 1x4mm2
    Certification : TUV/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 50000m per day
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    4mm² 100m DC1.8KV Single Core Solar Cable Red Black

    XLPE 12AWG (4mm²) Wire 100M Red Male Black Female Solar Panel DC Cable


    The 200M solar cable is made with Fully Annealed stranded bare copper conductor, increases conductivity.Designed to withstand extreme heat and cold (-40℃ to 90℃ )and 6 mm² is thick enough to push maximum permissible voltage: up to 1.5 kV.
    The red(male) solar cable have multiple resistant: Acid and alkali resistant Resistant to ozone, UV-resistant, very durable to use.


    Technical Data of 4mm DC single core Solar Cable


    Cross SectionAWGMaximum Conductor Resistance at 20ºCMaximum insulation Resistance at 20ºCMaximum insulation Resistance at 90ºCCurrent Carrying Capacity
    Single cable free in airSingle cable on surfaces2 loaded cables adjacent on surfaces
    mm2-ΩMΩ.kmMΩ.kmAAA
    1.51613.78590.859302924
    2.5148.216910.691413933
    4125.095790.579555244
    6103.394990.499706757
    1081.954240.424989379
    1661.243420.342132125107
    2540.7953390.339176167142
    3520.5652870.287218207176


    (We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,

    please consult me directly if necessary)


    Wire: Copper (Class 5, tinned)UV resistance
    Insulation material: XLPEHigh wear and abrasion resistance
    Double insulationFlame test according to:
    DIN EN 50265-2-1 UL1571(VW-1)
    Halogen-freeSmallest permissible Bending Radius : 5 x D
    High resistance against oil, greases, oxygen and ozoneTemperature range: -40℃ ~ +90℃
    Microde-resistantColours: Black & Red

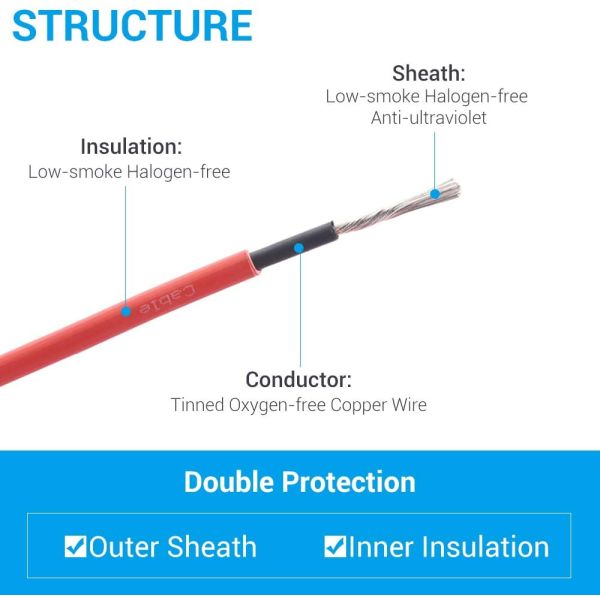

    Pictures of 12AWG (4mm²) DC Solar Cable



    FAQ:

    1. When can I get the quotation?
    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
    2. How long about the delivery?
    Usually within 3-4 working days after payment, mainly according to the quantity.
    3. What's your payment terms?
    We accept T/T (bank transfer), L/C
    4. Do you accept the customized order?
    Yes, we do.
    5. Do you offer OEM & ODM?
    Yes. OEM & ODM are available.
