1024*768 LCD Video Wall Controller
1 in 4 HDMI outputs 1080P TV LCD Video Wall Controller
1, Overview
The 1 in 4 HDMI outputs 1080P TV LCD Video Wall Controller is
designed to be a truly in/out modular video wall processor, to
capture, AD convert, route, distribute all-format signal to
multiple video wall, including LCD TV,DID, DLP, Plasma, etc.,
while maintaining a true digital signal.The controller with many
different video interfaces, include HDMI, VGA, AV,
2, Specification
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution
up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight | 4 port: 1.6 Kg 5~10 port: 2.5 KG |

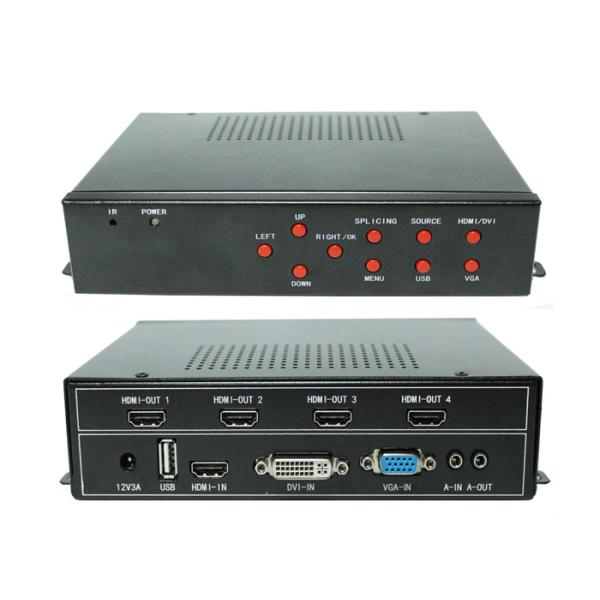

3. Product Pictures:
4, Key Features
1. Individually supports 180° rotation
2. Easy maintenance: suitable for all environments
3. Various control port: RS232, remote controller(optional)
4. DCP compliant: HDMI 1.3, HDCP protection
5. 1 in 4 HDMI outputs 1080P TV LCD Video Wall Controller
5, System Topology
7,Dimension
TV BOX 0104
