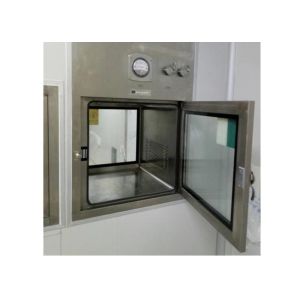

Lab Dynamic Sterilize Cleanroom Pass Box With Testing Port

Sterilize Pass Box Lab Dynamic pass box Cleanroom Pass Boxes With Testing Port

1. Cleanliness in the laminar flow pass box: Class A;

Embedded ultraviolet germicidal lamp on top

2. The internal circular plate chamfering processing, no dead angle

3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;

4. Filter: PRE filter G4, and HEPA Filter H14;

5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);

6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;

7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;

8. Set the inspection port at the lower part of the pass box for maintenance of the fan;

9. Noise: <65db;

10. high efficiency airflow equalizer board: 304 stainless steel mesh board.

Technical Specification:

Design drawing
