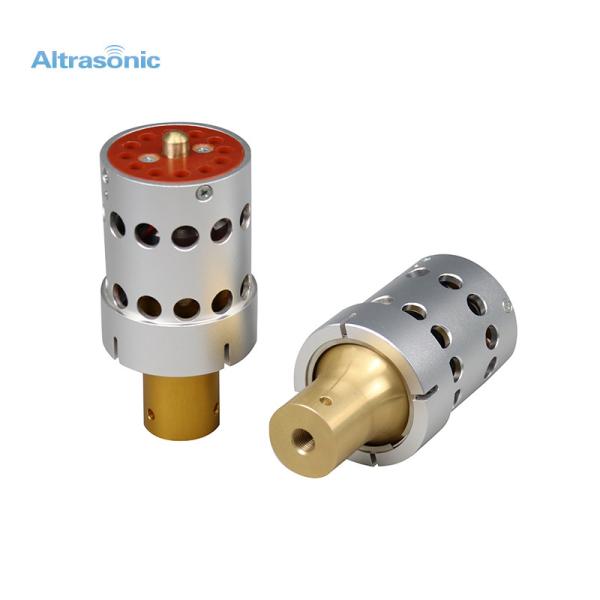

20kHz High Power Ultrasonic Transducer Replacement Dukane 110-3122
For Welding Application
20kHz High Power Ultrasonic Transducer Replacement Dukane 110-3122
Specifications:
Model | HS-D110-3122 |
Frequency | 20 khz |
Output power | 2000 watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50 mm |
Quantity of Ceramic discs | 4 pcs |
Capacitance | 11nF |
Amplitude | 20 um |
Application | welding machine |
Description:
It is applied to Dukane type 110-3122 ultrasonic welding machine.
The transducer converts high-frequency electrical energy into
high-frequency mechanical vibrations. And it contains several
piezoelectric ceramic discs sandwiched under pressure between two
metal blocks. Between each disc is a thin metal plate, which forms
the electrode. When a sinusoidal electrical signal is fed to the
transducer via the electrodes, the discs expand and contract,
producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn
constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of
industries.
Applied Industries :
Automobile industry, electric industry, medical industry, household
appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Applied Machines :
Ultrasonic cleaner,Beauty set,welding machines,cutting
machines,Medical scalpel and tartar clear.
Competitive Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and
final assembly. The properties of piezoelectric materials can
change with time and pressure, so a bit of time on the shelf prior
to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance
are excellent.
4. In good heat resistance, can be used in a wide range of
temperature with long life and high reliability.
Warranty:
We offer the same warranty as the OEM, namely, one years one-time
replacement.
Simply ship the broken unit back to arrive within one years of
original shipment, and it will be replaced (one time).
