10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper

    Buy cheap 10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper from wholesalers

    Buy cheap 10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper from wholesalers
    • Buy cheap 10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper from wholesalers
    • Buy cheap 10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper from wholesalers

    10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper

    Ask Lasest Price
    Brand Name :
    Model Number : PV1-F 1x6mm2
    Certification : TUV/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 50000m per day
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper

    XLPE 10AWG (6mm²) Wire 200M Red Male Black Female Solar Panel DC Cable


    The 200M solar cable is made with Fully Annealed stranded bare copper conductor, increases conductivity.Designed to withstand extreme heat and cold (-40℃ to 90℃ )and 6 mm² is thick enough to push maximum permissible voltage: up to 1.5 kV.
    The red(male) solar cable have multiple resistant: Acid and alkali resistant Resistant to ozone, UV-resistant, very durable to use.


    Technical Data of 6mm DC single core Solar Cable


    TypeCross SectionStrand DesignConductor DiameterConductor ResistanceOuter DiameterRated VoltageRated Current
    PV-1x6mm26.0mm284x φ0.3mm3.3mm3.52 Ω/km7.1mm1800VDC95A


    (We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,

    please consult me directly if necessary)


    Wire: Copper (Class 5, tinned)UV resistance
    Insulation material: XLPEHigh wear and abrasion resistance
    Double insulationFlame test according to:
    DIN EN 50265-2-1 UL1571(VW-1)
    Halogen-freeSmallest permissible Bending Radius : 5 x D
    High resistance against oil, greases, oxygen and ozoneTemperature range: -40℃ ~ +90℃
    Microde-resistantColours: Black & Red

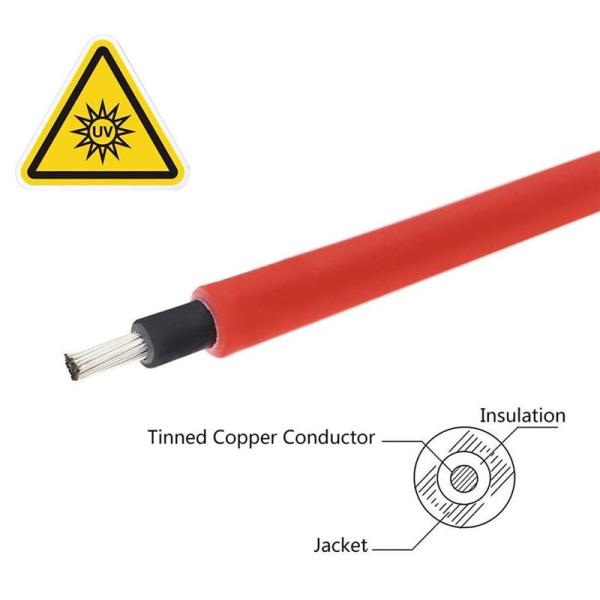

    Pictures of 10AWG (6mm²) DC Solar Cable


    FAQ:

    1. When can I get the quotation?
    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
    2. How long about the delivery?
    Usually within 3-4 working days after payment, mainly according to the quantity.
    3. What's your payment terms?
    We accept T/T (bank transfer), L/C
    4. Do you accept the customized order?
    Yes, we do.
    5. Do you offer OEM & ODM?
    Yes. OEM & ODM are available.
