60Hz Vertical Geophone High Sensitivity With KCK Connector

    Buy cheap 60Hz Vertical Geophone High Sensitivity With KCK Connector from wholesalers

    Buy cheap 60Hz Vertical Geophone High Sensitivity With KCK Connector from wholesalers
    • Buy cheap 60Hz Vertical Geophone High Sensitivity With KCK Connector from wholesalers

    60Hz Vertical Geophone High Sensitivity With KCK Connector

    Ask Lasest Price
    Brand Name : EGL
    Model Number : Geophone 60Hz Vertical
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 10000sets/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    60Hz Vertical Geophone High Sensitivity With KCK Connector

    60Hz Vertical Geophone High Sensitivity With KCK Connector


    Type60Hz Vertical Geophone
    Geophone DirectionVertical Direction
    Geophone Type60Hz
    Geophone CaseWaterproof Land Case
    SpikeSteel Spike length75mm
    Lead-in

    Standard:1mlead-in with O.D.4.6mm

    Custom Outer Diameter / Lead Distance available

    Connector Type

    *Mueller Clips

    *Split Spring Clip

    *KCK Connector( Male or Female / Push Fit or Lock Ring Type)

    *Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

    *Other Connector Type available

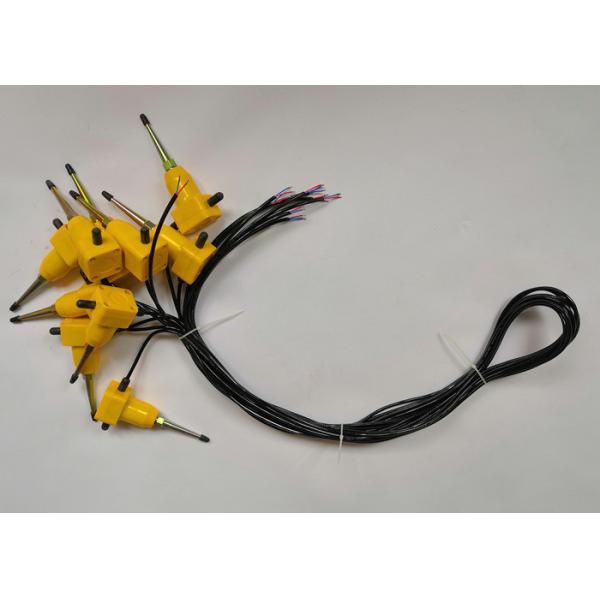

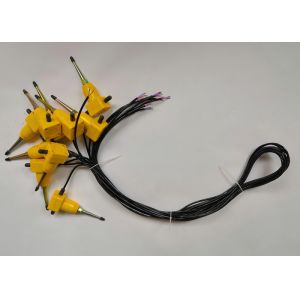

    Single geophone 60Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated with KCK Male connector (408 connector).



    TypeEG-60-II
    Natural Frequency ( Hz )60Hz ± 5%
    Coil resistance(Ω)1450 ± 5%
    Open Circuit Damping0.49 ±5%
    Damping With Shunt Resistor0.573 ± 5%
    Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )48.0 v/m/s ± 5%
    Sensitivity With Shunt Resistor ( v/m/s )34.0 v/m/s ± 5%
    Damping Calibration-Shunt Resistance (Ω)3600Ω
    Harmonic distortion ( % )<0.2%
    Typical Spurious Frequency (Hz )≧300Hz
    Moving Mass ( g )7.3g
    Typical case to coil motion p-p ( mm )1.2mm
    Allowable Tilt≦20º
    Operating Temperature Range ( ℃ )-40℃ TO +100℃
    Height ( mm )32mm
    Diameter ( mm )26mm
    Weight ( g )80g
    Warranty Period3 years

    Quality 60Hz Vertical Geophone High Sensitivity With KCK Connector for sale
