DIN.2.0850 Copper Beryllium Round Rods By Standard ASTM B442, SAE
J461, 463 And RWMA Class 3
Product Description:
| 1 | Item | Copper beryllium round rods |
|---|
| 2 | Grade | DIN.2,0850 |
|---|
| 3 | Standard | ASTM B442, SAE J461, 463 And RWMA Class 3 |
|---|
| 4 | Temper | A(TB00),H(TD04),AT(TF00),HT(TH04) |
|---|
| 5 | Surface | Polish, Bright |
|---|
| 6 | Feature | High Strength and high conductivity |
|---|
| 7 | Payment | T/T, L/C, Western Union |
|---|
| 8 | Package | Standard export packing - Bundle package
- Wooden case, wooden pallet package
- Container or bulk
- Special package according to customers' request
|
|---|
| 9 | Application | - Electrical: Instrument Parts, Connectors, Heavy Duty, Relay Parts,
Conductors, Switch Parts, Fuse Clips;
- Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll
Pins, Screws, Bolts;
- Industrial: High Flux Electromagnets, Thermal Transfer Plates,
Welding Equipment, Springs, Die Casting Plunger Tips.
|
|---|
| 10 | Delivery Time | - The products in stock will delivery immediately after received the
payment.
- According to the order quantity, usually within 15-20 days.
|
|---|
| 11 | Price Terms | FOB, CIF, CFR, EX-Work, CNF |
|---|
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: alloys selected for high strength
(Alloys 172,173,170) and alloys selected for high conductivity
(Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia
Market. Also Supply Master alloy : CuBeryllium-200;
CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global
factory.
CUBERYLLIUM ®-751 also named -C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with
electrical and thermal conductivity from 45 to 60 % of pure copper.
Alloys 750 and 751 are available in wrought product forms and can
be supplied fully hardened. Hardened products are identified by the
temper designation AT or HT, and have good formability.
Chemical Composition of DIN.2.0850 Copper Beryllium Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Nickel | Cobalt+Nickel | Cobalt+Nickel+Iron | Lead | Copper |
| Cuberyllium-C751 | C17510 | 0.20 ~ 0.60% | 1.40 ~ 2.20% | - | - | - | Balance |
Typical Physical Properties of DIN.2.0850 Copper Beryllium Alloys:
| Density | 8.83 | g/cm3 |
| Density before age hardening | 8.75 | g/cm3 |
| Melting Range | 1000~1070 | ℃ |
| Elastic Modulus | 14.10 | (kg/mm2 (103) |
| Thermal Expansion Coefficient | 18 x 10 -6 | 20 °C to 200 °C m/m/°C |
| Thermal Conductivity | 0.57 | cal/(cm-s-°C) |
Mechanical and Electrical Properties of DIN.2.0850 Copper Beryllium Round Rods:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength Mpa | Elongation Percent (Min) | Electrical Conductivity Percent IACS | Hardness Rockwell B Scale |
|---|
| A(TB00) | ALL SIZE | / | 240~380 | 20~40 | 20~35 | B20~50 |
H(TD04) | ALL SIZE | / | 440~550 | 10~20 | 20~35 | B20~30 |
| AT(TF00) | ALL SIZE | 3 hr 480℃ | 680~900 | 10~30 | 45~60 | B92~100 |
| HT(TH04 | ALL SIZE | 2 hr 480 ℃ | 750~960 | 5~30 | 48~60 | B95~102 |

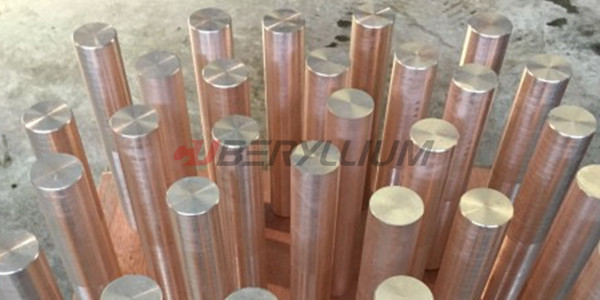

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This
reaction is generally carried out at temperatures between 260°C and
540°C depending on alloy and desired characteristics. This cycle
causes the dissolved beryllium to precipitate as a beryllium rich
(gamma) phase in the matrix and at the grain boundaries. It is the
formation of this precipitate which causes the large increase in
material strength. The level of mechanical properties attained is
determined by the temperature and time at temperature. It should be
recognized that beryllium copper has no room temperature aging
characteristics.
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous
Furnace.
3:Surface further polishing for top clients.
Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid
before the delivery.
Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
