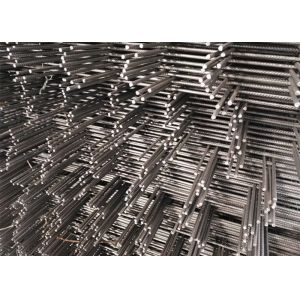

Q235 150×150 Concrete Welded Wire Mesh 11.8m

    Buy cheap Q235 150×150 Concrete Welded Wire Mesh 11.8m from wholesalers

    Buy cheap Q235 150×150 Concrete Welded Wire Mesh 11.8m from wholesalers
    • Buy cheap Q235 150×150 Concrete Welded Wire Mesh 11.8m from wholesalers
    • Buy cheap Q235 150×150 Concrete Welded Wire Mesh 11.8m from wholesalers

    Q235 150×150 Concrete Welded Wire Mesh 11.8m

    Ask Lasest Price
    Brand Name : HBGB
    Model Number : GB-005
    Certification : ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000 pcs per day
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Q235 150×150 Concrete Welded Wire Mesh 11.8m

    150 x 150 reinforcing concrete welded wire mesh for construction


    Concrete Reinforcement Welded Wire Mesh Description:


    Reinforcing mesh also know as reinforcement mesh, concret mesh, is made of round bar or ribbed bar. Reinforcing mesh is a welded wire fabric mesh. It has a square or rectangular- mesh grid pattern, produced in flat sheets.


    Concrete Reinforcement Welded Wire Mesh Specifications:


    Standard reinforcing mesh sizes are 6.0m x 2.4m for the SL and RL range of products.

    Reference
    Standard
    Main Wires
    Cross Wires
    Edge Wires
    Mass
    No
    Unit
    (mm)
    (mm)
    (mm)
    (kg)
    SL81
    Sheet
    7.6 @ 100
    7.6 @100
    7.6 @100
    105
    SL102
    Sheet
    9.5 @ 200
    9.50 @ 200
    6.75 @ 100
    80
    SL92
    Sheet
    8.6 @ 200
    8.60 @ 200
    6.00 @ 100
    65
    SL82
    Sheet
    7.6 @ 200
    7.60 @ 200
    6.00 @ 100
    52
    SL72
    Sheet
    6.75 @ 200
    6.75 @ 200
    4.75 @ 100
    40
    SL62
    Sheet
    6 @ 200
    6.0 @ 200
    4.75 @ 100
    33
    SL52
    Sheet
    4.75@ 200
    4.75@ 200
    4.00 @ 100
    21

    Reference No
    Standard Unit
    Main Wires
    (mm)
    Cross Wires
    (mm)
    Mass
    (kg)
    RL1218
    Sheet
    11.9 @ 100
    7.60 @ 200
    155
    RL1118
    Sheet
    10.65 @ 100
    7.60 @ 200
    130
    RL1018
    Sheet
    9.50 @ 100
    7.60 @ 200
    109
    RL918
    Sheet
    8.55 @ 100
    7.60 @ 200
    93
    RL818
    Sheet
    7.60 @ 100
    7.60 @ 200
    78
    RL718
    Sheet
    6.75 @ 100
    7.60 @ 200
    68

    Features of Concrete Reinforcement Welded Wire Mesh include:

    1-High strength ,tensile strength exceeding 550map
    2-Convenient for installation.saving 70% of time as compared to manually bound mesh
    3-Cost effective.saving more than 30% of steel bars ,reducing overall costs by more than 10%
    4-Facilitating enhancement of project quality.reducing surface cracking of roads,ground and concrete floors of buildings by more than 75%

    Concrete Reinforcement Welded Wire Mesh Applications:


    · Concrete footpaths

    · Industrial and commercial ground slabs

    · Precast Panel construction

    · Residential slabs and footings



    Pictures of Workshop and Producing:


    Quality Q235 150×150 Concrete Welded Wire Mesh 11.8m for sale
