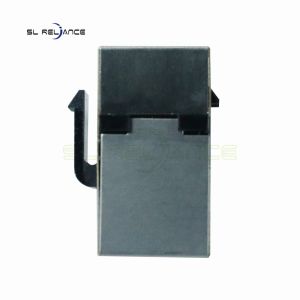

    Female To Female Shielded CAT6 RJ45 Keystone Jack Inline Coupler 180 Degree Toolless

    Ask Lasest Price
    Brand Name : SL
    Model Number : SL-JACK-2060C6
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100K PCS per WEEK
    Delivery Time : 3-5 Days after payment
    • Product Details
    • Company Profile

    Female To Female Shielded CAT6 RJ45 Keystone Jack Inline Coupler 180 Degree Toolless


    Rj45 Female To Female Ethernet Networking Shielded CAT6 Keystone Jack Inline Coupler 180 Degree Tooless


    SL Inline Coupler are the best chooice to extending the cables and linking several networking cable toghter. The SL Cat6 Couplers are most offen used togher with cat6 cable. The Coupler Jack keystone are compatiable with standards blank patch panels and wall plates. With Gold-Plated terminals to resist the corrosionn for years of usage, inline couplers provide female to female pass through connection.


    Features:


    1. Available in Cat6a, T568A/B wiring schemes, meet or exceed TIA/EIA Cat6 requirements
    2. Fits for 22/23/24AWG cables
    3. Housing: High temperature thermoplastic
    4. Compact jack design, 8 positions and 8 conductors
    5. Contact: Phosphor bronze, phosphor bronze with 6 to 50μ "gold plate
    6. Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
    7. Contact material: Phosphor bronze with golden plated 3, 6, 15, 30, 50U at optional



    Model NumberSL2060C6
    NameINLINE COUPLER
    TYPEFTP shieled
    Category6
    SpringPhosphor Bronze & Gold-painted
    Wiring mode:T568A&T568B
    IDC Terminal22-26 AWG Cable
    IDC Pin:Phosphor Bronze & Tinned
    RJ45 Insert pin8P8C 8" Gold Plated
    Housing MaterialZINC-ALLOY,PC
    ColorSilver
    TestChannel test and Flukee test


    Electrical
    Voltage Rating :AC 125V
    Current Rating :1.5 AMPS
    Insulation Resistance:500MΩ Min
    Withstand Voltage:DC 1000V RMS 50-60Hz Min
    Contact Resistange:20MΩ Max
    Mechanical
    Insertion Force:2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
    Retention Strength:70N between jack and plaug;60N between wire and IDC
    Durability:Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
    Wire:AWG 24-26
    Material
    Housing:Zinc-Alloy
    IDC Hosing:PC(UL94V-0)
    Spring Wire:T=0.35mm phosphor bronze alloy selective gold
    0.45 dia phosphor bronze gold plating over nickel
    IDC Contact :Phosphor bronze;Nickel plating
    Shielding:T=0.25mm copper alloy with tin plated gold
    Plating :3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
    Working Environment
    Temperature:-10°c TO 60°c
    Humidity:10-90%
