Natural Rubber Boat Ship Launching Airbags D1.5*L10m Marine Rubber
Airbag
Product Advantage
High Bearing Capacity
We adopted a new rubber formula and used a high-strength reinforced
synthetic cord layer to increase the carrying capacity of the
airbag by more than twice. The synthetic cord layer of Henger
Marine Launching Ship Airbag adopts impregnated Nylon-6 1400dtex /
3-V2 tire cord. Compared with ordinary polyester tire cord, its
strength and durability are increased by 20%.
High Kneading-resistance Capability
When the airbag rolls under the bottom of the ship, the rolling
speed is uneven, and the airbag will withstand the "kneading force"
from the bottom of the ship and the ground, which may cause
problems such as delamination and buckling.
Technical Requirement
According to CB/T 3795--1996, marine rubber fender should meet the
following requirements.
- Dimensional Deviation:
Diameter & Effective Length Deviation: ±2%
Total Length Deviation: ±4%
- Amount of Elastic Deformation: diameter deformation amount ≤ 5%
under 1.2 times working pressure.
- Safety Factor: >4.5
- Air Tightness: depressurization < 5% after 1hour inflation
- Surface Quality: fairing line shape, no crack, no bubble, no double
skin, no impurities, no distinct dirt and other apparent defect.
- Anti-explosion design of end part.
Specifications
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Rubber Airbag Application
1.Ship Launching & Upgrading
2.Weight Lifting & Moving

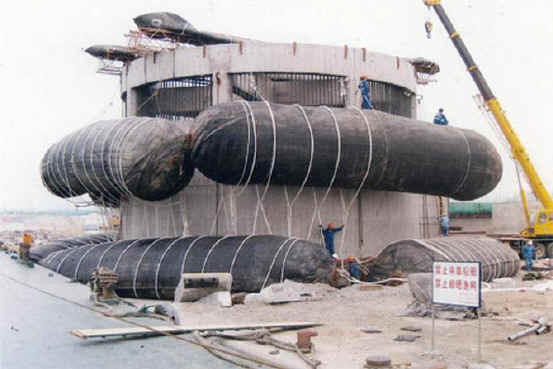

3.Buoyancy Aid & Salvage
Airbag storage
1. The airbag should not be used for a long time, it should be
washed and dried, filled with talcum powder on the outside, and
placed in a dry, cool and ventilated place indoors.
2. The place where the air bag is stored should be far away from
heat sources.
3. The airbag should not be in contact with acids, alkalis, grease
and organic solvents.
4. When the airbag is not in use, it should be stretched out and
placed flat, not stacked, and no heavy objects shall be piled on
the airbag.
5. Do not drag the airbag on the ground.
You may also like
FAQ
1. Minimum Order Quantity ( MOQ): 1 Pcs
2. Delivery time: 7 days ( depends on the quantity of order)
3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.
4. Production standard: ISO14409 & GB/T 3795-1996
5. Expected lifespan: 10-15 years.
6. Warranty period: 12 Monthes
7. Factory direct selling of Marine rubber airbags Please inquiry
our salespersons for the best price.
