    AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig

    Ask Lasest Price
    Brand Name : Hwashi
    Certification : CCC,CE,ISO
    Payment Terms : L/C, T/T
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig

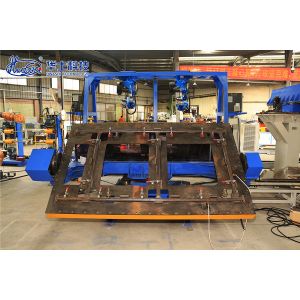

    Hwashi Automatic welding robot arm for scaffolding,Mig tig welding robot


    Advantages of Robots

    1. Lower labor cost

    2. Increase production efficiency

    3. High product quality

    4. Enhance enterprise competitiveness.

    5. Easy to learn, easy to operate


    APPLICATION/Industrial robot arm

    The robot arm is widely used in Welding, Grinding, Painting, Spraying, Pickup and place, loading and unloading, stacking, transferring,transportation,etc.


    Parameters of Industrial robot arm

    ModelHS-R6-08HS-R6-10HS-R6-20HS-R6-50HS-R6-165
    DOF6
    Driving ModeAC Servo Driving
    Effective Load8KG10KG20KG50KG165KG
    Repeat Accuracy±0.05mm
    Working radius1400mm1589mm1595mm1950mm2483mm
    Weight180KG180KG290KG600KG1300KG
    Motion Range(°)J1±170±170±170±180±180
    J2±120~-85±120~-80±132~-95±130~-90±80~-60
    J3±85~-165±85~-165±73~-163±75~-210±80~-190
    J4±180±180±180±360±360
    J5±135±135±133±115±115
    J6±360±360±360±360±360
    Max Speed(°/s)J1130130147158100
    J213013010014990
    J3130130135130104
    J4270270300215144
    J5170170198251160
    J6455455194365215
    Power4KVA4KVA6KVA14KVA31KVA
    Voltage380V or 220V
    Frequency50Hz or 60Hz
