3M467MP Adhesive Double Sided Flexible PCB Board With Low Resistance

Stable Double sided Flexible Printed PCB Board with low resistance and high precision

Company Introduction
The company is equipped with the same industry advanced production equipment, key equipment (such as automatic punching machine, baking line, screen printing machine, punch, film thickness meter, etc.) are from Taiwan and Japan, and is committed to the new form of intelligent automation upgrade and transformation; At the same time, the company has perfect testing equipment (high and low temperature, salt spray, adhesion, life tester, etc.) to fully ensure the reliability of products, all the management cadres have taiwan-funded factory working experience, to provide a strong guarantee for the reliability and consistency of products.


Descriptions:

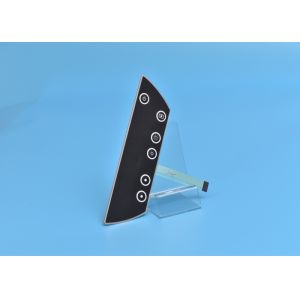

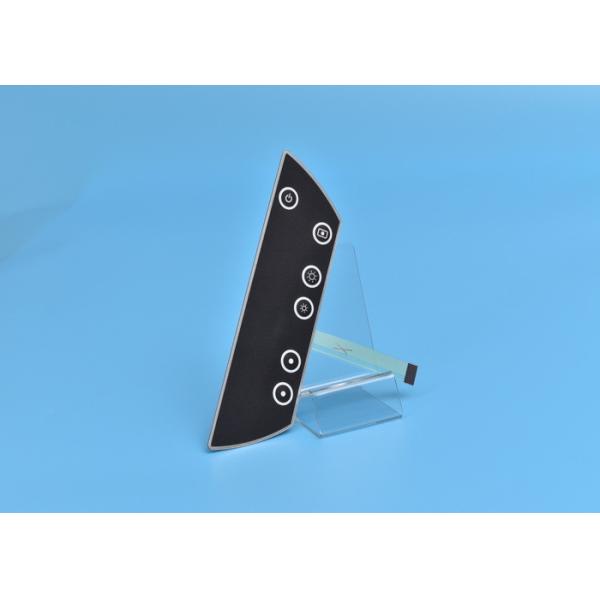

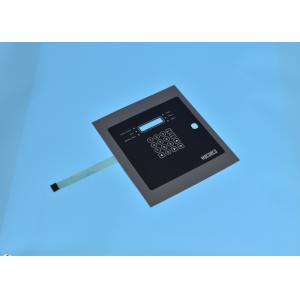

Flexible Remote Control Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel

Applications:

1. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.

2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen

3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around

4. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.

5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc



Specifications

Process Capability

1. Drilling:The minimum diameter 0.1mm
2. Hole metallization:Minimum aperture 0.2mm,Thickness / aperture ratio 4:1
3. Wire width: Minimum:Gold plate 0.10mm, Tin plate0.1mm
4. Wire spacing: Minimum:Gold plate 0.10mm, Tin plate0.1mm
5. Gold plate: nickel layer thickness:≧2.5μ,Gold layer thickness: 0.05-0.1μm or according to customer requirements
6. HASL: tin layer thickness:≧2.5-5μ
7. Paneling: Line-to-edge minimum distance: 0.15mm hole to edge minimum distance: 0.15mm smallest form tolerance: ± 0.1mm
8. Socket chamfer: Angle: 30 degrees, 45 degrees, 60 degrees Depth: 1-3mm
9. V Cut: Angle: 30 degrees, 35 degrees, 45 degrees Depth: thickness 2/3 Minimum size: 80mm * 80mm
