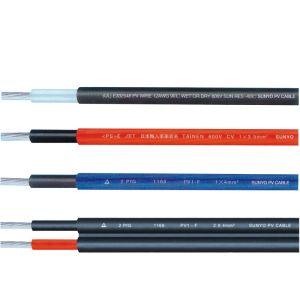

6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification

    Buy cheap 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification from wholesalers

    Buy cheap 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification from wholesalers
    • Buy cheap 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification from wholesalers
    • Buy cheap 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification from wholesalers
    • Buy cheap 6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification from wholesalers

    6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification

    Ask Lasest Price
    Brand Name : DONGJIAXIN
    Model Number : PV1-F,PV Cable
    Certification : UL, TUV Double certification
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    6mm2 / 4mm2 H1Z2Z2-K Solar PV Photovoltaic Cable TUV Certification

    photovoltaic PV cable DC Cable TUV AND UL certification 6mm2 /4mm2 Solar PV cable

    Product Description

    UL approved photovoltaic PV cable, TUV approvd 2PfG 1169 PV1-F solar cable 4mm2 Solar PV Cable, 12AWG PV Cable for solar panel

    Solar Cable

    Application
    Double insulation, electron-beam cross-linked cables for photovoltaic power station.

    Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment


    Construction
    Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
    Insulation: Polyolefin copolymer electron-beam cross-linked
    Outer Sheath: Polyolefin copolymer electron-beam cross-linked
    Sheath color: Black/Red/Blue or as per customer's requeit
    photovoltaic PV cable DC Cable TUV AND UL certification  6mm2 /4mm2 Solar PV cable
    Technical Specification
    Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
    Test Voltage: 6500V,50Hz,5min
    Temperature Rating:
    -45ºC ~ +125ºC
    -40°F ~ +257°F
    Ambient temperature
    -40ºC ~ +90ºC
    -40°F ~+194°F
    Max. Short circuit temperature:280ºC,+536°F
    Bending Radius: Fixed installation>4X, Occasionally moved>5X

    Material Properties/ Standards
    Fire-resistance performance: IEC 60332-1
    Smoke emission: IEC 61034; EN 50268-2
    Low fire load: DIN 51900
    Approvals: TUV 2PfG 1169/08.2007 PV1-F
    Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502

    Construction
    Conductor Construction
    Conductor ø
    Outer ø
    Resistance Max.
    Current Carring Capacity
    n×mm²
    n/m
    mm
    mm
    Ω/Km
    A
    1×1.5
    30/0.25
    1.58
    4.9
    13.3
    30
    1×2.5
    50/0.25
    2.02
    5.45
    7.98
    41
    1×4.0
    56/0.3
    2.30
    6.1
    4.75
    55
    1×6.0
    84/0.30
    3.42
    7.2
    3.39
    70
    1×10.0
    142/0.30
    4.56
    9
    1.95
    98
    1×16.0
    228/0.30
    5.60
    10.2
    1.24
    132
    1×25.0
    361/0.30
    6.95
    12
    0.795
    176
    1×35.0
    525/0.30
    8.74
    13.8
    0.565
    218
    1×50.0
    720/0.30
    9.20
    14.8
    0.393
    280
    1×70.0
    988/0.30
    11.00
    16.9
    0.277
    350
    1×95.0
    1349/0.30
    12.50
    18.7
    0.21
    410
    1×120
    1691/0.30
    14.20
    20.7
    0.164
    480

    photovoltaic PV cable DC Cable TUV AND UL certification  6mm2 /4mm2 Solar PV cable

    Packaging & Shipping

    photovoltaic PV cable DC Cable TUV AND UL certification  6mm2 /4mm2 Solar PV cable

    Product Package

    Electric  S/FTP Patch Cord Flexible Network Cable AL Foil Shielded Cat 6a Lan Cable 8

    Packging details

    Cat5e Aerial Cable With Messenger  Outdoor Waterproof Ethernet Cable 1000 Ft High Quality Networking Lan Cable Cat5e Aerial Cable With Messenger  Outdoor Waterproof Ethernet Cable 1000 Ft High Quality Networking Lan Cable Cat5e Aerial Cable With Messenger  Outdoor Waterproof Ethernet Cable 1000 Ft High Quality Networking Lan Cable

    – Coil in foil 100m (as of 10 mm2)

    – Coil in cardboard (100m) as required (up to 6 mm2)

    –Electrical wire ready to delivery

    –Reel / Drum (as of 35 mm2)

    –Other package as required

    Advantage:

    Compressed Conductor easy for installation, UV - resistant , total protection for the cable

    Standards&Certificates:

    IEC 60502-1 TUV

    Packing&Delivery:

    Packaging details : Delivery :
    Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 1 Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 2 Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 3
    Steel Wooden Drums Cable Drum In container shipped in 15 days after payment

    ▼ Cable Drum Data:

    CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
    Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 4 1000 700 500
    1100 700 550
    1200 700 600
    1400 750 710
    1600 900 900
    1800 1120 1000
    2400 1150 1300

    Workshop and Quality Test

    Outdoor 23AWG 0.56mm Pure Copper Double sheath direct buried waterproof Ethernet cable LAN Cable Network Cable FTP Cat6

    Package and Delivery

    Outdoor 23AWG 0.56mm Pure Copper Double sheath direct buried waterproof Ethernet cable LAN Cable Network Cable FTP Cat6

    Payment and Shipping

    Payment

    We usually use T/T

    T/T deposit before production and balance when shipment.

    Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

    Shipping

    If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

    For big order,we will ship the goods by air or by sea.

    Company information:

    Annual revenue is about 500 million US dollars.

    30 years of experience in R & D, production and sales of wire and cable.

    Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

    CNAS laboratory, more than 100 testing reports.

    Products are widely used in real estate, municipal, industrial support, mobile communications etc
