    JIS F 2002 Cast Iron Dog Type Chain Cable Compressor Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Standard and Customized
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : As per quotation
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    Delivery Time : As per offer
    • Product Details
    • Company Profile

    JIS F 2002 Cast Iron Dog Type Chain Cable Compressor Ship Mooring Equipment

    JIS F 2002 Cast Iron Dog Type Chain Cable Compressor Ship Mooring Equipment


    Description

    JIS F 2002 Cast Iron Dog Type Chain Cable Compressors is mounted by bolts on the foundation. The body is made of high ductile cast iron. The bar type chain stopper uses the bar to clamp the anchor chains and prevents it from movement during ship sailing. This type of chain stopper is mainly used on boat and inland waterway ships. It is simple structure and easy to operate. We can produce all types of chain stoppers and provide customized service. For more information, please feel free to contact us.


    Main Technical Specification;

    1. Technical Standard: JIS F 2002-1976
    2. Nominal Size: 19-68;
    3. Type: Bar type with Class A-Type a,b, Class B-Type a,b,
    4. Chain Size: 17-68mm
    5. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
    7. Certificates:Classification CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Mill certificate Etc.
    8. Can be customized as shipyards requirements.

    Main Technical Parameters:

    ClassTypeApplication
    AType aJoining shackles or Kenter shackles
    are led on the track in horizontal posture
    Type b
    BType aKenter shackles can be led in
    the track groove in vertical posture
    Type b
    No.PartsMaterial
    1BodyJIS G 5501-FC 25 or equivalent
    2DogJIS G 4051-S 25C or equivalent
    3Hinge pin
    4Locking pin
    5WasherSteel plate
    6Split pinJIS G 3505-SWRM or equivalent
    Nominal
    Size
    Applicable Chain
    Dia. (mm)
    BHLH3B2Weight
    {kg)
    1917-19195190270323222
    2220-22215216310373831
    2523-25240241345434344
    2826-28265270385484958
    3230-32305305435545589
    3634-363403424906161122
    4038-403703785406865160
    4442-444054125907572208
    4846-484404506408278272
    5250-524704916958885338
    5654-564955227459592414
    6058-6053056479510298505
    6462-64565600850109104618
    6866-68590635900116110737

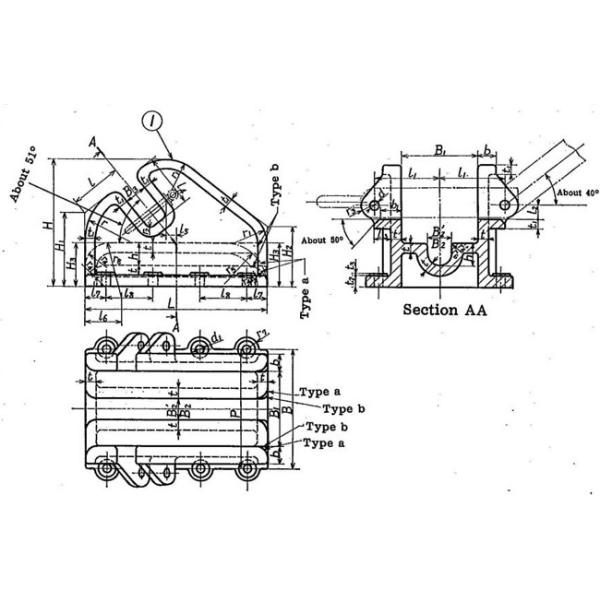

    Drawing of JIS F 2002 Cast Iron Dog Type Chain Cable Compressor Ship Mooring Equipment
