Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    Buy cheap Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S from wholesalers

    Buy cheap Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S from wholesalers
    • Buy cheap Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S from wholesalers
    • Buy cheap Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S from wholesalers

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYTC8S
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    GYTC8S 24 Core Figure 8 Armored Self-Supporting Steel Fiber Optic Cable


    Description

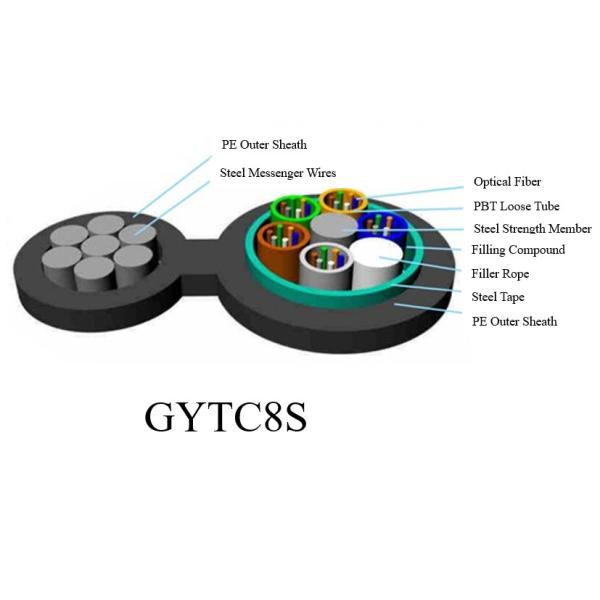

    The structure of GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core (also non-metallic, such as FRP, etc.), and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact circular cable core. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.



    Product Standards


    GYTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.


    Features


    1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit

    2. Stable fiber excess length control

    3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change

    4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃



    Technical data

    Cable Type
    Fiber Count
    Cable Diameter mm
    Cable Weight kg/km
    Tensile Strength
    Crush Resistance
    Bending Radius
    Long/Short Term
    Long/Short Term
    Static/Dynamic
    N
    N/100mm
    mm
    GYTC8S
    2-30
    9.8*18.5
    166
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    32-48
    10.6*19.3
    180
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    50-60
    10.6*19.6
    190
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    62-72
    11.3*20.3
    217
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    74-84
    12.7*21.7
    252
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    86-96
    12.7*21.7
    252
    2000/6000
    300/1000
    10D/20D

    Details

    Fiber Core

    1. Corning/YOFC/FiberHome/Fujikura Fiber Core Options


    2. Single Mode/Muli Mode Options


    3. 12 different Colors Option, can do as your request

    Armored

    PSP/APL Armored,.Plastic coated steel strip Increase the mechanical strength of the GYTC8S cable


    Improve corrosion resistance


    7*1.0mm Steel for Overhead, Aerial


    PE Outer Jacket Material

    High Quality New PE Material


    1. Smooth appearance


    2.Flame retardant


    3.Corrosion protection


    4.Long service life


    Application


    Packing
