Automatic OPP Hot Melt Glue Labeling Machine For Plastic Bottle
Introduction

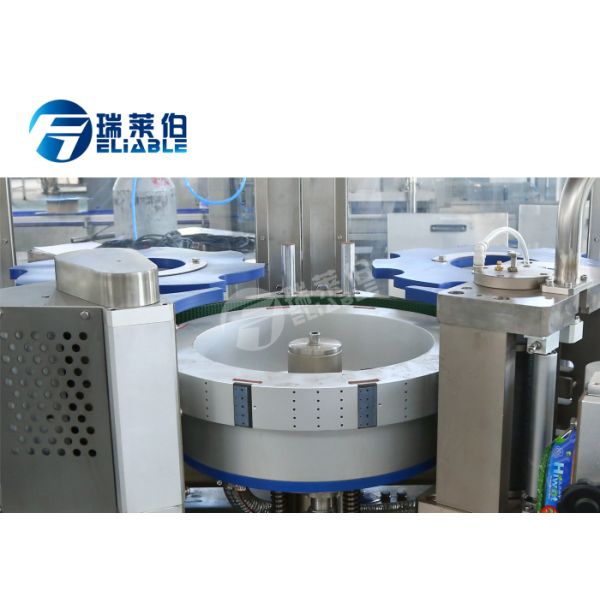

BOPP labeling machine can make different kinds of label on the
bottles automaticly.
Two narrow strips of hotmelt glue the labels together, which are
applied by a heated glue roller to the leading and trailing label
edges. The label with the glue strip on its leading edge is
transferred to the container. This glue strip ensures an exact
label positioning and a positive bond. As the container is rotated
during label transfer, labels are applied tightly. Gluing of the
trailing edge ensures proper bonding.
Advantages
1. Host Controller working with the frequency three-phase motor to
control transmission
2. Label supply applying the servo motor synchronous tracking
cutting, specially designed vacuum drum high-speed absorption,
accurate and stable labeling.
3. the machine power is 9 KW. so save electric resource.
4. Independent feeding material shelf: the position of the material
shelf is optional at will.
5. All-cover type stainless steel host machine: the whole machine
is waterproof as well as rustless.
6. It is easy to adjust the label cutting knife, easy and accurate
to use hand handle to adjust the position of cutting knife, the
vacuum drum is made of high rigid material to minish friction and
static.
7. Low cost in terms of energy-saving and low failure rate.
8. Easy operation and easy maintenance. This machine can also
connect air conveyor by applying a linker.
Technical Parameter:
| Main engine size (length*width*height) | 4000L x 1500W x 1800H mm |
| Main engine production speed | limitation: 7500bph |
| Main engine power supply | AC 3 phase220-380V |
| Main engine power | 8kw |
| Label material | OPP feed roll Paper |
| Label length | 10mm -330mm |
| Bottle/can diameter | 50- 106 mm |
| Junction line error | +/-1.5mm |
Heavy-duty construction utilizes oversized drive components
combined with an aluminum and stainless steel base frame for years
of dependable service.
Various product infeed systems are available that provide precise
product spacing and orientation. It can be used stand alone or
integrated in-line and matching filling equipment speeds.
Advanced high torque micro-stepping driven applicators include
ratio-offset and speed-following capability for accurate and
reliable application of a wide variety of label materials.
