1800 KG/H Liquid Nitrogen Tunnel Freezer

Ask Lasest Price
Brand Name :	DJL
Certification :	ISO9001 ce
Supply Ability :	10 Set/Sets per Year
Price :	negotiable
Model Number :	DJL-QFL-1216
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	30-45 working days

Add to Cart

Product Details
Company Profile

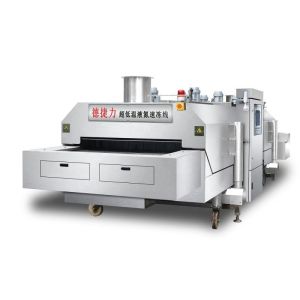

1800 KG/H Liquid Nitrogen Tunnel Freezer

Cooling Tunnel Freezing Fish Freezing Line Iqf Freezer Liquid Nitrogen Tunnel Freezer

Product description

As consumers pay more and more attention to food safety and quality, how to obtain high quality food products has become a big challenge in front of us. Cooling and freezing food becomes the preferred storage method to extend its shelf life and maintain its quality. DJL liquid nitrogen tunnel freezers for dumplings can help you achieve a substantial increase in production efficiency without changing the unit freezing cost. With stable and excellent work performance can meet your various production needs on the premise of ensuring work efficiency. This equipment can be easily integrated into an existing production line. Compared with the ultra-low temperature tunnel freezer of the same length, it can greatly improve the capacity of quick-freezing.

Brief introduction of liquid nitrogen tunnel freezers for dumplings:

Brand:	DJL
Place of origin:	Shenzhen, China
Model:	DJL-QFL-1212
Style:	Lifting type
Capacity:	800~1000kg/h (Different products, different productivity)
Equipment material:	SUS304
Power distribution:	Distribute as per customer's local voltage
Working temperature:	-120℃~ Room temperature
Temperature control precision:	±2℃
Cooling rate:	≥10℃/min
Insulation of equipment:	150mm thickness, foam polyurethane insulation, excellent insulation performance
Food transportation:	SUS304 special food conveyor belt, speed and tightness can be adjusted automatically
Liquid nitrogen control valve:	Combined control of automatic valve and manual stop valve, equipped with redundant system to ensure adequate safety
Convection circulation:	Enhanced axial fan with high-power fan motor, cooling speed is fast and uniform, with double air lock function at both ends, effectively reducing cold air leakage
Lifting system:	Screw lifter, lifting height: 500mm
Electrical control:	Man-machine interface +PLC, easy to learn input, intuitive and reliable control, with temperature monitoring and alarm functions, electrical interlock, to ensure the safety of equipment and process operation.
Equipment maintenance:	The long-life and low-consumable design, easy replacement of wearing part,, excellent maintainability.
Equipment cleaning:	Easy cleaning, HACCP standard, equipment is equipped with outfall
Price:	Negotiable
Payment method:	TT
Date of delivery:	Negotiable

Specification

Model	Tunnel length (mm)	Wire belt width (mm)	Tunnel height (mm)	Power (KW)	freezing capacity (kg/h)
DJL-QFL-1206	6000	1200	1750	10	400-600
DJL-QFL-1209	9000	1200	1750	12	800-1000
DJL-QFL-1212	12000	1200	1750	18	1000-1200
DJL-QFL-1609	9000	1600	1750	15	1000-1200
DJL-QFL-1612	12000	1600	1750	28	1800-2100
DJL-QFL-1618	18000	1600	1750	32	2000-2500
DJL-QFL-1815	15000	1800	1750	28	2000-2500
DJL-QFL-1818	18000	1800	1750	32	2200-2800
DJL-QFL-1824	24000	1800	1750	46	2800-3500

Liquid nitrogen quick freezing system diagram

1. liquid nitrogen freezing tunnel

2. liquid nitrogen tank

3. tank base

4. exhaust duct

5. exhaust fan

6. liquid nitrogen pipeline

Our Advantages

1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.

2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.

3. Personalized scheme provides you the best cost performance of product

4. Close cooperative relationships with many universities

5. Three minutes quick-freezing ,the temperature low to minimum -196℃

6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.

7. Free experiment and verification supporting .

8. Better serving customers by setting up branches and offices in country's areas.

Exhibition

Product Tags:

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Shenzhen Dejieli Refrigeration Technology Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

1800 KG/H Liquid Nitrogen Tunnel Freezer

1800 KG/H Liquid Nitrogen Tunnel Freezer

1800 KG/H Liquid Nitrogen Tunnel Freezer

1800 KG/H Liquid Nitrogen Tunnel Freezer

2100 KG/H Liquid Nitrogen Tunnel Freezer

cooling tunnel machine MINUS 140C

1800 KG/H Liquid Nitrogen Tunnel Freezer

You May Like

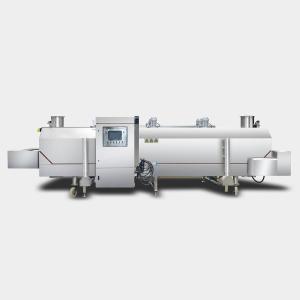

1200KG/H Liquid Nitrogen Tunnel Freezer
