Model SRL-Z 500/1000 Heating Cooling Unit Vertical Plastic Mixer
Machine For PVC Powder Mixing
Description
FRIEND SRL-Z Series Mixing Unit is mainly for PVC Industry or any
other coloring, drying mixing for plastic industry. The unit
combines hot mixer with pancake cooler. Normally the cooler
capacity is double size of the hot mixer. The mixer blade is 3
terrace Style Blade for Rigid PVC formulation and Round Disk Style
for Soft PVC Formulation. The mixing time can be 10-15 minutes per
batch.
Feature
1.It is used in mixing, drying, coloring and other industrial art,
it is the ideal equipment for producing profile and pipe,all the
extruding complete lines. 2.It is heating mixing has self-friction
electric heating.
3.Two layers of sealing is adopted in the pot cover, pot cover of
cooling machine adopts arch cover, which can avoid deforming.
4.High Speed Pvc Hot And Cold Mixer has features of contact
construction, good performance.
5.They have passed the test of dynamic balance and static
equilibrium according to the national standard.
Our Superiorities
this plastic mixer apply to mix all kinds of plastic material with
accessories of chemical additive agent .we have series of various
plastic mixer unit , such as SRL-Z series mixer unit , SRL-Z
200/500 , SRL-Z 300/600 , SRL-Z 500/1000 , SRL-Z 800/1600 , SHL
series mixer unit,SHL200A , SHL300A , SHL500A , SHL800A , SHL1000A
, horizontal mixer unit SHL 1000/3000 , SHR series mixer unit ,
SRL-W500/1600 , SRL-W800/2500 etc.

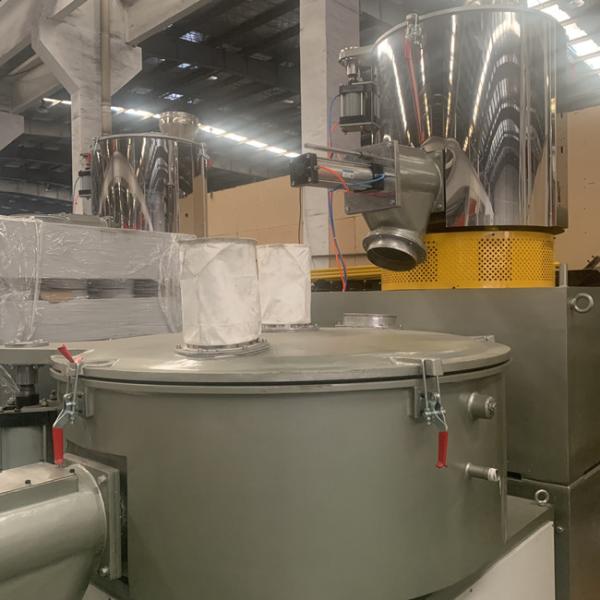

This high speed plastic mixer is composed of two parts , hot mixing
and cool mixing equipment , at same time ,it has drying function .
1.All the inner side contact with raw material are made of
stainless steel material .
2.it's well hermetic with a double sealed closure.
3.it has alternative heating ways for option , automatic and manual
control
4.it has high automatic degree and is easy to operate , the raw
material flows automatic in all the processing program
Main Techniacal Parameter
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 |
| Total Volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 |
| Effective Volume(L) | 65/130 | 150/320 | 225/380 | 375/650 |
| Speed(rpm) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 |
| Mixing Time(min) | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor Power(kw) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 |
| Figure Size(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 |
