Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W

    Buy cheap Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W from wholesalers

    Buy cheap Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W from wholesalers
    • Buy cheap Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W from wholesalers
    • Buy cheap Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W from wholesalers
    • Buy cheap Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W from wholesalers

    Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W

    Ask Lasest Price
    Brand Name : LH
    Model Number : LI
    Certification : IEC61215/IEC61730/TUV/CQC/ISO
    • Product Details
    • Company Profile

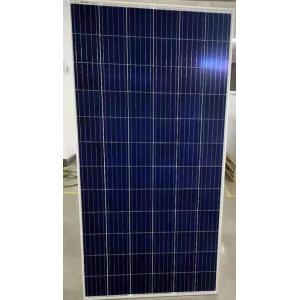

    Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W

    435w/440w/445w/450w/455w photovoltaic solar panels solar panel for home use

    Features:

    • Excellent module efficiency up to: 21.50%
    • IP68 junction box for long-term weather endurance
    • Heavy snow load up to 5400Pa, wind load up to 3600Pa
    • PID: Selected material and stringent quality system ensure PID free
    • Applicable to harsh environment of deserts, farmlands and seasides
    • Much lower risk of Hot Spot

    WARRANTY

    From the 2nd year to the 30th year,the average annual power decline will be no more than 0.5%.

    Linear power output warranty

    -12 years minimum 92% power output

    -30 years minimum 83% power output

    Product warranty on materials and workmanship According to the applicable rise Warranty Statement


    ELECTRICAL SPECIFICATIONUnitLH-435MHLH-440MHLH-445MHLH-450MHLH-455MH
    Maximum Power (Pmax)W435440445450455
    Module Efficiency%2020.220.520.720.9
    Open Circuit Voltage (Voc)V48.748.949.149.349.5
    Short Circuit Current (Isc)A11.3911.4611.5311.611.66
    Maximum Power Voltage (Vmp)V40.8941.141.3 041.541.7
    Maximum Power Current (Imp)A10.6410.7110.7710.8410.91
    Maximum System VoltageVICE 1500VDC/UL1500(VDC)
    Maximum Series Fuse RatingA20

    ELECTRICAL DATA@NOCTLH-435MHLH-440MHLH-445MHLH-450MHLH-455MH
    Pmax[W]324.9328.6332.3336.1339.8
    Vmp[V]38.138.338.538.638.8
    Imp [A]8.538.598.648.78.75
    Voc[V]45.745.84646.246.4
    lsc[A]9.219.279.339.389.43

    MECHANICAL SPECIFICATIONS
    Solar Cell TypeMono Crystalline
    Number of Cells144pcs(24x6)
    Module Size2115*1052*35mm
    Weight24kg
    Glass3.2mm tempered glass
    Back SheetWhite or Black
    FrameAnodized aluminum alloy .silver or black
    Junction BoxIP68
    Quantity of Diodes3 pcs
    Cable4.0mm2 1100mm
    ConnectorMC4 Compatible
    Wind/Snow Load3600pa/5400pa

    PACKAGING CONFIGURATION

    Modules per box:30 pieces
    Number per 20GP:275 pieces
    Modules per 40’ HQ:660 pieces
