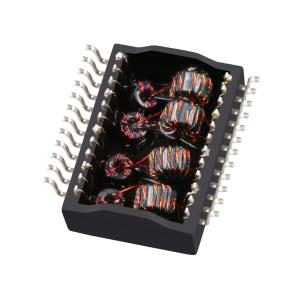

TG5G-HPE10NZ5LF 5G 1A POE+ 24Pin SMD Transformer Modules

TG5G-HPE10NZ5LF 5G 1A POE+ 24Pin SMD Transformer Modules

Detailed Information:

Reel Package : SPQ/750pcs, Qty-carton/4500pcs, Carton size/37*37*25cm, G.W-carton/7kg

Feature:

10/100 BASE-T MAGNETICS MODULES P/N: H2001DG DATASHEET
●Dual Port transformer Modules (10/100 Base-TX) for Auto MDI/MDIX applications.
●Compatible with IEEE 802.3 and ANSI X3.236 standard
including baseline wander compensation specification OF
350uH OCL when Biased at 8mA from 0℃ ℃ to 70 ℃.
●Availiable in Through Hole package.
●Operating Temperature range: 0℃ ℃ to +70 ℃
●Storage temperature range: -25℃ ℃ to +125 ℃

Electrical Specifications @ 25°C

1.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
2.Pri OCL: 350uH MIN
@100KHz,0.1V,8mADC Bias.
3.Insertion Loss:
1-100MHz:-1.15dB MAX
4.Return Loss(dB MIN):
1-30MHz:-18 30-60MHz:-14
60-80MHz:-12
5.Crosstalk:
1-100MHz:-38dB MIN
6.CMRR: 1-100MHz:-40dB TYP
7.Hi-Pot: 1500Vrms @0.5mA
8.Operating Temperature: 0℃～70℃/-40℃～+85℃
