    TS16949 Suspension Air Springs 3B20F-2P03 Height Stroke Small DIA. 223MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B20F-2P03
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    TS16949 Suspension Air Springs 3B20F-2P03 Height Stroke Small DIA. 223MM

    Suspension Air Springs AIRSUSTECH 3B20F-2P03 Height Stroke Lifte and Small DIA. 223MM


    AIRSUSTECH 3B20F-2P03 Air Bags product description:


    The air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded


    • In order to press the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load


    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags must be used to absorb the force


    • Before disassembling the air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags , the internal air must be released to prevent accidents and personal injury.


    • During operation, the rubber air spring shock absorber AIRSUSTECH 3B20F-2P03 Air Bags shall not be in contact with other parts


    AIRSUSTECH 2B6910 Cross OEM Original Equipment Manufacturer:

    AIRSUSTECH 3B20F-2P03

    AIRSUSTECH rubber bellows 20F-2P03


    3B20F-2P03 Specifications and Detail Technical Parameters


    ❶Nut/blind nut

    Top plate screw (nut) teeth: 2X3/8-16UNC
    The screw center distance of the top cover plate: 89 mm
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
    The screw center distance of the bottom cover plate: 89 mm

    ❷Air hole/air inlet/air fittings
    Air hole/air inlet: 1/2NPTF
    Screw center distance between air hole and nut: 44.5 mm

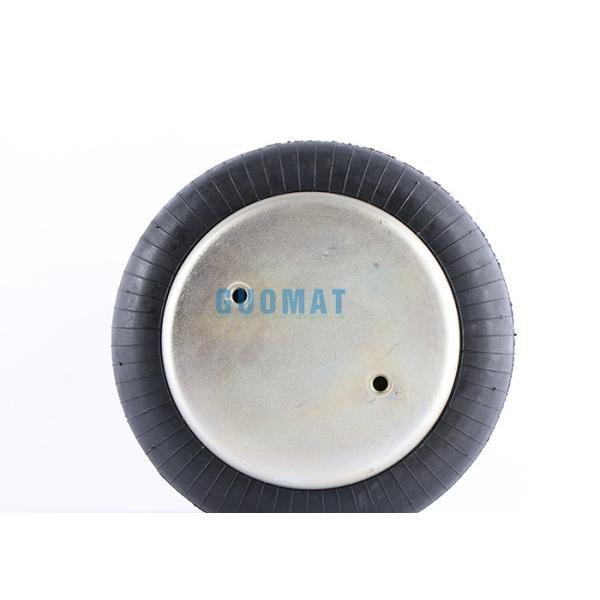

    ❸Cover plate
    Top plate diameter: 160 mm
    Diameter of the bottom cover: 160 mm

    Bell rubber bellows
    Maximum diameter of rubber bellows: 251 mm
    Natural diameter of rubber bellows: 223 mm
    Working stroke: minimum 200 mm to maximum 400 mm
    Maximum height: 400 mm
    Minimum height: 200mm
    Stroke height: 200mm

    ❺Bumper block/bumper block
    No bumper block

    ❻Belt loop/Belt loop
    There is a belt hoop: a belt hoop

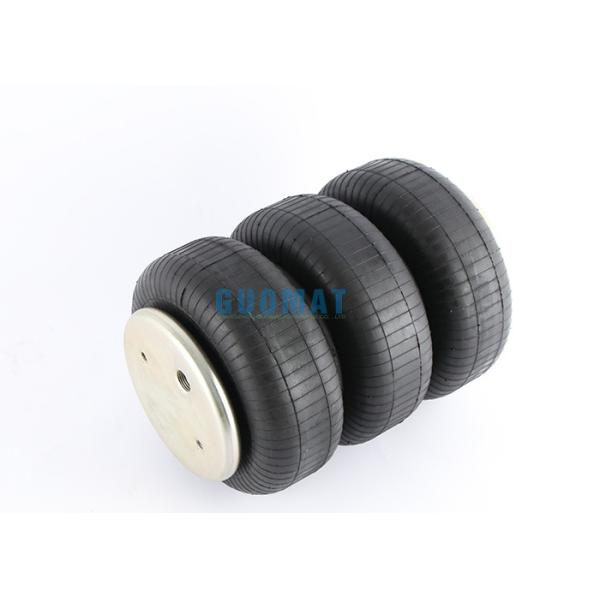

    Quality TS16949 Suspension Air Springs 3B20F-2P03 Height Stroke Small DIA. 223MM for sale
