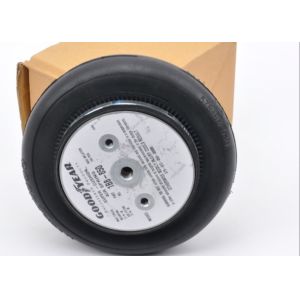

FS120-10 Contitech Air Spring Suspension Repalce By 1B8-850 Bellows 579-91-3-530

FS120-10 Contitech Air Spring Suspension Repalce by 1B8-850 Bellows 579-91-3-530 Isolators

Instructions of FS120-10 air spring:

To ensure stability, the distance from the floor to the center of gravity of the load should not exceed the shortest distance between the FS120-10 air springs.
The FS120-10 air spring has almost no lateral stability. Therefore, a laterally stable fixation must be added. The path of motion must be guided because the air spring provides almost no lateral stability.
Only pressurize the air spring when it is loaded.
An external extension stopper is required to limit the extension of the FS120-10 air spring, so that it is not easy to damage the air spring.

FS 120-10​ OEM Original Equipment Manufacturer:Goodyear 1B8-850

German brand airbag

ContiTech FS 120-10 CI G 1/4

ContiTech FS120-10 CI G 1/4

German ContiTech air spring
1B8-850 Goodyear Air Spring Single Airbag 579913530
Anliding air spring YI-1B8-850 YM-1B8-850 579 913 530
SUPER-CUSHION @ AIR SPRING ISOLATORS 1B8-850

ContiTech ASSEMBLY NUMBER.:FS 120-10 CI G 1/4

ContiTech ASSEMBLY NUMBER.:FS120-10 CI G 1/4

ASSEMBLY NUMBER
Goodyear Air Spring 1B8- 850 Made in Mexico 579-913-530 Made in Mexico
Goodyear original single vibration industrial air spring 1B8-850 air suspension system
Goodyear ASSEMBLY NUMBER.:1B8-550
Goodyear ASSEMBLY NUMBER:1B8-552
Goodyear ASSEMBLY NUMBER.:1B8-553
Goodyear ASSEMBLY NUMBER:1B8- 554

Goodyear ASSEMBLY NUMBER.:1B8 550
Goodyear ASSEMBLY NUMBER:1B8 552
Goodyear ASSEMBLY NUMBER.:1B8 553
Goodyear ASSEMBLY NUMBER:1B8 554

Cross Firestone OEM

Firestone ASSEMBLY NUMBER.:Wo1-M58-6166 Firestone Metric Single Convolution Air Spring
Firestone ASSEMBLY NUMBER.:Wo1-M58-6166,

Firestone ASSEMBLY NUMBER.:Wo1M586166,

Firestone ASSEMBLY NUMBER.:WO1-M58-6166,

Firestone ASSEMBLY NUMBER.:WO1M586166
Firestone actuator WO1-M58-6166, Metric 8 X 1.25 Dark Nut, 1/4 BSP

FS120-10 Product Description

Technical Data

• Compressed height
• 2.01"
• Maximum deployment height
• 5.91"
• The maximum diameter
• 9.09"
• Maximum inflation pressure
• 120 psi
• Maximum stroke
• 3.9"
• Inlet type
• empire
• Air inlet
• 1/4"
• series
• C
• lowest temperature
• -76°F
• Maximum temperature
• 158 degrees F
• Bellows type
• Single twist
• weight
• 0.2 lbs.

ContiTech Air Spring FS120-10 CI PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

ContiTech Air Spring FS120-10 CI VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

ContiTech Air Spring FS 120-10 CI SERVICE INSTRUCTIONS
