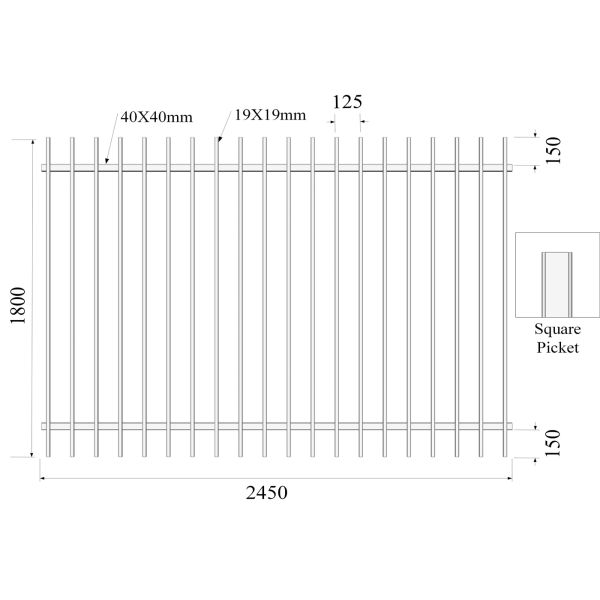

45 degree mitred Picket 19mmx19mm H1800mmxW2450mm Rail 40mm x 2
Black Powder Coated Diplomat Fence
1. Heavy duty Crimp top picket steel fence in Black colour only
2.Width 2400mm x Height 1800mm Crimp top diamond shape
3.40x40x1.6mm top rail,25x25x1.2mm Verticals
4. There are 17 vertical pickets 20x20mm with diamond crimped on
top.
5. The gap in between the pickets is110mm
6. 60x60x2mm thick post - these are 3m long each not 2.6m long as
others supply.
7. Normal fence powder coated brackets
8. Security fence brackets (powder coated )
9. Caps for 60x60 posts (powder coated )
10. Phosphate treated before powder coating (Very Important)
11. All panels are fully protected
1) Our panels are made out of the thicker material top and bottom
rails 40x40x1.6and25x25x1.2 for all verticals
2) The gap in between the verticals is110mm compared to wider gaps
with others.
3) We use for all our panels galvanized material only.
4) Very important is that we phosphate wash our panels before
powder coating which means a very high-quality
powder coating which will long last many years compared to my
competitors.
Usages:Widely used in villas, community, gardens, schools,
factories and other flower beds, lawns, industrial
and mining enterprises, financial institutions, sports stadiums,
convention centers, squares, roads, balconies,
residential use, its flowing lines, simple and beautiful and full
of rich modern residential sensual, garden Light,
villas era of high grade. Simple installation, easy maintenance,
easy to clean, affordable, eliminating maintenance.
Assembled fence procedure: 1>Cut Shot 2>Punching Holes 3> Acid washing 4>Powder Coat 5>Assembled | Sections come fully assembled or welded.
Custom width or height sections are available. |
Welded fence procedure: 1>Cut Shot 2>Punching Holes 3>Profusion welded 4>Acid Washing 5>Powder Coat |
Introduction every part:
Product description of steel fence:
1. Base Material: Hot-dip Galvanized steel
2.Technology Procedure - Four layers of surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and
coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting,
anti-impaction and anti-corrosion;
4. Polyester colour coat: With extra anti-UV rays, corrosion and
self-cleaning
1. Pickets Detail:
Pickets top is so important. It must be sealed very well on the
top, or it is easy to rust. We can ensure you
sealed very well pickets. Which highly improved the lifetime of the
fence:
Another famous kind of pickets is finials (Usually tubular fence
need finials):
2. Horizontal Rails:
Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm
rail:
Type2: Puncha square hole on 40*40mm rail or 20*40mm or 45*45mm
rail:
Type 3: Punch holes on 1-7/16’’ * 1-1/2’’ “U” Type rail:
3.Posts:
According to usage, posts can be divided into 2 kinds. One kind is embedded post (At
least 50cm will be
embedded under the ground. The other kind is Post with flanged
chassis. According to the direction,
posts including Line post, Corner post & End post.
4. Attachments or Connection between the post and the panel:
Above the attachment are made of hot-dip galvanized material, and
powder coat the same colour with the
Panels.
5. Types of Gates
Single Gates; Double Opening gates; Sliding Gate; a Suspended gate
6. Panels which can suit up and down hills or sloped terrain.
There are mainly 2 ways to suit the slope, one way is made the
fence into slope fence, it can adjust
according to the slope.
The other way is to install the fence like stairs step.
See the 2 ways below the pictures:
7.Steel fence, Available in Residential Series, Residential Series
Premium, CommercialSeries, and Commercial Series Premium. Our
company have a reinforced double-wall rail
with hidden fasteners.
