1.8mx2.1m oval cattle yard fencing

    Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers

    Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers
    • Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers
    • Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers
    • Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers
    • Buy cheap 1.8mx2.1m oval cattle yard fencing from wholesalers

    1.8mx2.1m oval cattle yard fencing

    Ask Lasest Price
    Brand Name : LNF-Farm Fencing
    Model Number : Australia And US standard
    Certification : ISO
    • Product Details
    • Company Profile

    1.8mx2.1m oval cattle yard fencing

    Cattle panels fence is designed for the safe and effective flow of cattle in the lead up to the race, reducing stress on livestock by separating operator and beast.
    Cattle panel can have different shapes, below are the popular shapes and specification on the market.

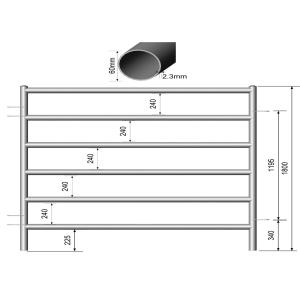

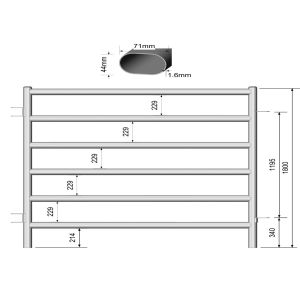

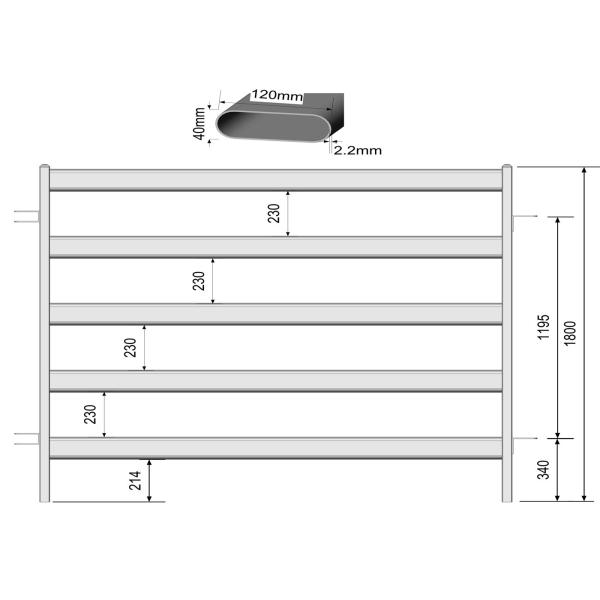

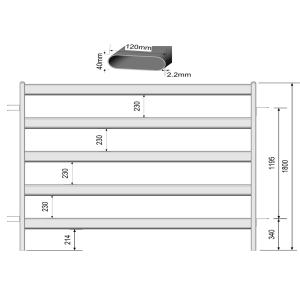

    Panel type 1: oval rail with square vertical tube
    Height
    1.6m, 1.8m, etc.
    Width
    2.07m, 2.09m, 2.9m, etc.
    Horizontal oval rail
    30x60mm, 40x80mm, 42x115mm;
    4pcs, 5pcs or 6pcs
    Vertical square tube
    40x40mm, 50x50mm, 75x75mm, etc.
    2pcs
    Welded parts
    U lugs, L lugs, caps, panel base
    Accessories
    pins
    Material
    hot dipped galvanized steel
    Panel type 2: rails and vertical are all square tubes
    Height
    1.8m
    Width
    2.07m, 2.09m
    Horizontal square rail
    40x40mm, 50x50mm
    6pcs
    Vertical square tube
    40x40mm, or 50x50mm
    2pcs
    Welded parts
    U lugs, L lugs, caps, panel base
    Accessories
    Pins
    Material
    Hot dipped galvanized steel
    Panel type 3: rails and vertical are all round tubes
    Height
    1.8m
    Width
    2.07m
    Horizontal&Vertical tube
    42mm or 48mm O.D
    6pcs
    Welded parts
    Lugs, caps and panel base
    Accessories
    pins
    Material
    hot dipped galvanized steel
    Panel type 4: round tubes with bent bottom base
    Height
    5ft, 6ft
    Width
    9ft, 10ft, 12ft, etc.
    Frame&rail round tube
    32mm or 42mm O.D
    Welded parts
    lugs, panel bent base
    Accessories
    chain lock, pins, etc.
    Surface treatment
    hot dipped galvanized or color coated
    Panel 5: Cattle yard rotary gate panel
    Height
    2m
    Diameter
    2.4m
    Support tube
    75mm O.D
    Sections
    2, 3 or 4
    Accessories
    chain lock, pins, etc.
    Surface treatment
    hot dipped galvanized
    As a professional livestock fence products manufacturer for over 10 years, we aware that if a farmer wants to run a cattle yard easily, only panels are not enough for them.We did lots of market research, went abroad to visit our customers and listened to their advice& recommendations.
    livestock products covers a wide range, from cattle panel gate, man gate, sliding gate, hay feeder, rotary gate, loading ramp to cattle crush.
    Find more livestock products details as following:
    Cattle panel fence gate:
    Height: 2.2m
    Width: 2.1m
    Frame tube:
    50x50mm square tube or 42mm round tube
    Lock: chain or spring lock
    Color powder coated gate
    Total height: 8ft
    Width: 12ft, or 10ft
    Round tube: 32mm or 42mm O.D
    Lock: chain lock
    Cattle yard rotary gate:
    Height: 2m
    Diameter: 2.4m
    Support tube: 75mm O.D
    Sections: 2, 3 or 4
    Man gate:
    Height: 2.2m
    Width: 2.1m
    Frame tube:
    40x40mm or 50x50mm square tube
    Lock: chain lock or spring lock
    Sliding gate:
    Height: 2.15m
    Width: 0.75m
    Frame tube:
    50x50mm square tube
    Horizontal tube:
    oval - 40x80mm, 42x115mm
    square - 40x50mm or 50x50mm
    Race bow:
    Height: 2.2m
    Width: 0.75m
    Frame tube:
    40x40mm or 50x50mm square tube
    Cattle loading ramp:
    Total height: 3.2m
    Length: 2.85m
    Width: 0.75m
    Vertical square tube: 60x60mm
    Sidelong square tube: 40x40mm
    Foot board: diamond plate
    Galvanized sheet: 1.6mm thikness
    Hay feeder:
    Height: 1m
    Diameter: 2m
    Shape: round or oval shape
    Bent square tube: 25x25mm
    Bent round tube: 32mm O.D
    3pcs make one set
    Cattle crush:
    Height: 2m
    Length: 3.05m
    Consist of cattle head bail, sliding gate, cattle panel and small gates.
    Main Features
    1) Various livestock fence panel products, offer one-stop service for your cattle yard.
    2) Long service life: more than 5 years
    High quality raw material, strong welding and hot dipped galvanized surface, etc would make panels perfectly finished.
    3) Both portable and permanent (panels buried under ground by cement) yard type are available.
    4) We are not just manufacturer, but also solution provider.
    Could design and check the panels and gates quantity you need according to cattle head.
    1. Portable: easy fast to handle (set up, remove and put down), makes the cattle panel fence very flexible.
    2. Robust: interlocking system makes the fence very stable quality steel and fully welding makes the panel more stronger, heavy duty and anti-broken. high zinc or color coated make the fence durable.
    3. Environment protecting: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundation. And it benefits grassland protection.
    4. Livestock protection: no sharp edge, very smooth welding spot finished.
    5. Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.
    * We keep in contact with our customers after they receive our panels.
    Answer their questions during installation or application, also listen to their advice and suggestion towards our panels.

    * Top panel quality and perfect after-sales service will help our customers as well as us to success in today's competitive fencing market.

    * Below are panels and gates usage photos from our Australia, New Zealand, America, Canada and UK customers.
