Mini UAV Video Link 20km HD Wireless Video Transmitter H.265 Coding
AES Encryption
HD AV 60 KM Data Entry Anti Signal New Splitter Tactical Backpack
Transmitter BNC Connector Self Defense For UAV /Drone
Such new design 1080P HD transmitter is a powerful HD transmit
system,using the core of mobile communication technology
COFDM(multi-carrier modulation technique),which can transmit good
quality and stable full-hd digital video signal under the condition of high
speed mobile and heavy building blocks transmission in city
environment.Support full HD 1080P H.264 encoding format and SDI two
HD inputs(single selection) as well support stereo balance audio
input and narrowband transmission system.
roduct features
● Support high definition analog video input NTSC/PAL
● Support HD mini HDMI 1080P, 720P video input, provide good
compatibility
● Menus can be changed at any time
● Support military level non-standard 128 bit dynamic AES
encryption
● Support non line of sight (NLOS), high-speed mobile transmission
● High performance, high capacity lithium battery powered (battery
can be replaced)
● Small size, light weight, easy to carry, using air-cooling fin
aluminum shell
●OLED display control interface with high brightness and low power
consumption
Description:

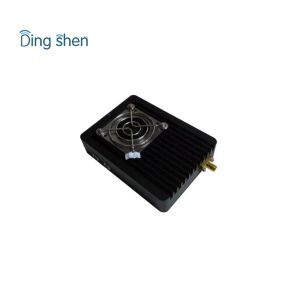

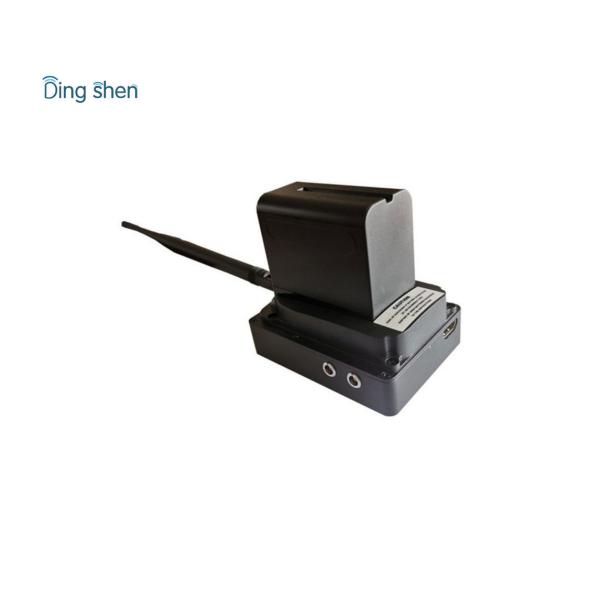

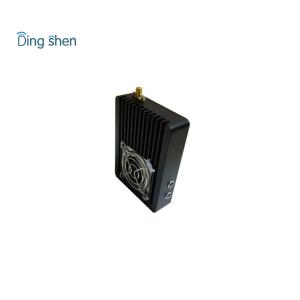

DS-HDT1W is a micro new customized HD COFDM video
transmitter,specially designed for UAV,UGV and body-worn use .It is
a rugged,miniature,high definition digital video transmitter ideal
for long range video and data control purpose. DS-HDT1W transmitter
is in full HD resolution with HDMI input for HDMI camcorder
connection, and data serial port(RS485/RS232/TTL) for one-way data
control.
The increased compression and efficiency of the H.264/H.265 encoder
offers users additional range with the added benefit of small
size,low latency and low power consumption.In particular,COFDM
provides robust,secure and reliable video transmission over long
ranges.And its great security of the transmission can be ensured
using the optional internal AES user defined encryption from end to
end.
Transmitter Specification:
| Voltage | DC12V |
| Power supply | DC12V/600mA |
| AV input | HDMI: support HD1080P/1080I,720P,576,480; |
| Data serial port | RS485RS232/TTL ,one-way communication |
| Frequency | 300-1500MHz (optional) |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| RF power | 1Watt(30dBm) |
| Encryption | AES -user defined password |
| Modulation | COFDM,2K,QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Resolution | 720P ,1080i/1080P@60fps |
| Parameter control method | User can Set up the related parameters by the control buttons |
| Built-in small LCD | display parameters,but will be shut up in 3 seconds after on. |
| Power switch | ON/OFF simple operation |
| CNR(weighting) | ≥58 dB |
| Sloping field SNR | ≥50 dB |
| RF Interface | SMA |
| Video formats | PAL/NTSC(self-adaption) |
| Low latency | 200ms |
| Working temperature | -20℃～75℃ |
| Dimension | 100*60*16mm |
| Weight | 133g(without battery) |
