    Customized Automatic Steering Material Transfer Trolley Device With Alarm Light

    Ask Lasest Price
    Brand Name : automatic guided vehicle
    Model Number : automatic agv transfer cart
    Certification : CE ISO SGS
    Price : USD 2000~7800 SET
    Supply Ability : 100 sets month
    Delivery Time : 20 work days after received balance payment
    • Product Details
    • Company Profile

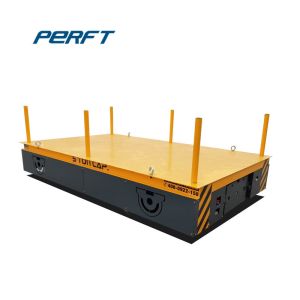

    Customized Automatic Steering Material Transfer Trolley Device With Alarm Light

    customized automatic Steering Device Steel Trolley Car Transporter with Alarm Light


    Product Description of Trolley Car Transporter


    Trolley Car Transporter is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, they are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
    The Trolley Car Transporter is without limitations to track length and distance due to it is free from the cable powered mould. And our standard heavy-duty design is controlled by a hand held joy stick or remote control with all wheel steering and small turning radius.



    Characters of Trolley Car Transporter

    --The Heavy Loads Trolley Car Transporter can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
    --The Heavy Loads Trolley Car Transporter can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
    --All of our Heavy Loads Trolley Car Transporter is equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
    --The Heavy Loads Trolley Car Transporter is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.



    Advantages Show
    ----agv transfer cart

    Powered by storage battery

    Factory history of 15 years

    Turning at a minimum radius

    Safety PU wheels for protection

    Running an unlimited way

    Operate easily

    Maintenance convenient



    Parameter List
    Model
    BWP-2TBWP-10TBWP-20TBWP-30TBWP-50TBWP-63TBWP-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)15002000=22002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8

    00190201712111550500
