    Polyamide PG13.5 Cable Gland, 20.4mm PG Thread IP68 Insulated Cable Gland for 6-12mm Cable Range

    Ask Lasest Price
    Brand Name : Sino Cable Gland Factory
    Model Number : NCG series
    Certification : CE, ROHS, PAHS, REACH, IP68, IP69K, UV, HF
    Price : most favorable prices from direct factory
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 5,000,000 pieces each month
    Delivery Time : normally 5-8 days
    • Product Details
    • Company Profile

    Polyamide PG13.5 Cable Gland, 20.4mm PG Thread IP68 Insulated Cable Gland for 6-12mm Cable Range

    Product Description:

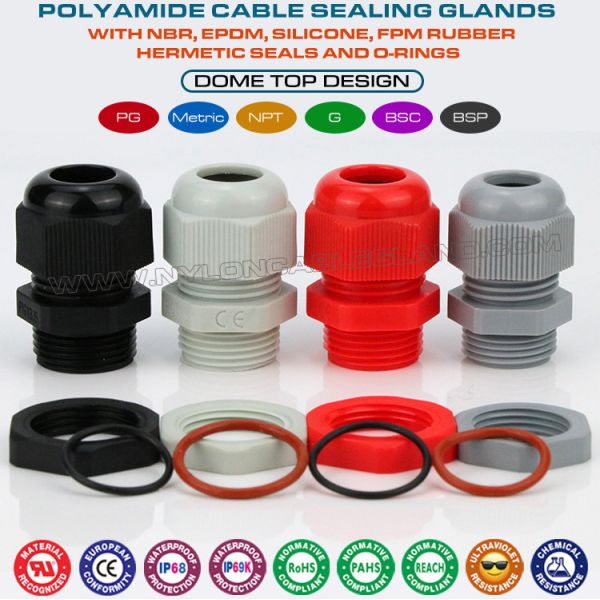

    Polyamide PG13.5 Cable Gland, 20.4mm PG Thread IP68 Insulated Cable Gland for 6-12mm Cable Range is a kind of mechanical cable entry device and can be constructed from metallic materials (mainly brass or stainless steel) or non-metallic materials (mainly polyamide, polymer, synthetic or PP). They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems.

    【High-quality Material】: Made of durable UL-approved Nylon PA66 plastic material, provides reliable performance for long-term use.

    【Waterproof Design】: With an IP68 waterproof rating, this cable gland can withstand harsh weather conditions, protect your project from dust, water and other pollutants. Whether indoors or outdoors, these cable glands can provide a safe and reliable connection for your wiring.

    【Versatile Cable Size Range】: Our gland cable connector can fit cable sizes ranging from 3mm to 55mm, providing versatility for different applications.

    【Easy to Install】: This cable gland is easy to install and requires no special tools. It comes with a locknut to secure the cable and provide strain relief.

    【Multiple Sizes Available】: We offer this cable gland connector in different sizes from M10x1.0 to M75x2.0 - so you can choose the perfect size for your needs.

    【Application】: Ideal for industrial, office or home project applications, widely used in cable fixing, wire connectors, distribution boxes, mechanical control boxes, electrical appliances and so on.
    Information:
    Brand name:Sino Cable Gland Factory
    Place of origin:Zhejiang, China
    Product name:Polyamide PG13.5 Cable Gland, 20.4mm PG Thread IP68 Insulated Cable Gland for 6-12mm Cable Range
    Available size:

    PG13.5 (cable range: 6-12mm)

    Materials:plastic parts: UL-polyamide 66, 94V-2 (contact us for 94V-0 material)
    sealing parts: Viton rubber (available in NBR, EPDM or Silicone Rubber)
    Colors:grey RAL7035, black RAL9005, special colors can be customized according to customer's request)
    Certifications:CE, ROHS, PAHS, REACH, IP68, IP69K, UV, Halogen Free
    IP protection:IP68 / IP69K (when the cable diameter is within the clamping range and assemble the O-ring)
    Thread length:available in short thread & long thread
    Thread system:according to DIN 40430
    Working temperature:

    static: -40℃ to +100℃, short-term: +120℃.
    dynamic: -20℃ to +80℃, short-term: 100℃

    Quality grade:high quality version can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications
    OEM services:yes, available
    Supply capability:5,000,000 pieces each month
    Minimum quantity:500 pieces
    Samples available:free samples are available upon request
    Delivery time:normally 5-8 days after confirmation of orders
    Payment terms:T/T, Western Union, L/C at sight
    Shipment terms:shipped by EMS / TNT / DHL / UPS / FEDEX, by sea / by air
    Export packing:

    100 pieces per bag + 100 pieces per color box,
    special packing can be customized as requested
