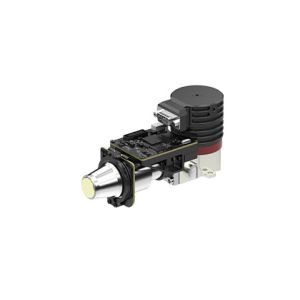

EYAS330 Cooled AD Module
The Accelerator for 320x25 / 30μm MCT MWIR Cooled Infrared Detector
Fast Integration
Product Description
EYAS series cooled AD modules have the pre-amplifier function to
convert the analog signal from cooled IR detectors into a digital
video stream output. It is available with different resolution
formats and different wave bands. EYAS330 is a member of EYAS
family with 320x256 / 30μm MWIR infrared detector and RS058
cryocooler integrated.
EYAS330 AD module features in frame rate up to 200Hz, snapshot,
ITR/IWR, windows, anti-blooming working modes. The proximity board
comes with EYAS330 makes it an accelerator for OEM customers to
carry out fast acceptance test on GST detectors, start rapid
secondary development and shorten their development period of
modules and complete products based on cooled infrared detectors.
Main Features
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
Product Specifications
| Model | EYAS330 |
| IR Detector Performance |
| Resolution | 320x256 |
| Pixel Pitch | 30μm |
| Cryocooler | RS058 |
| Spectral Range | 3.7μm～4.8μm MW |
| Cooling Time (25°C) | ≤6min |
| Optimal NETD (20°C) | ≤9mK |
| Working Mode |
| Frame Rate | 1~200Hz Adjustable |
| Working Mode | Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Electrical Specification |
| Standard External Interface | QSH 60pin |
| Digital Video | Cameralink: Output 16bit Raw Data |
| External Sync | CC1: INT/Frame External Sync; CC2: MC External Sync |
| Communication | Cameralink Serial Port: TFG+/-, TC+/-; 9600bps |
| Power Supply | 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V |
| Stable Power Consumption | 7W |
| Dimension (mm) | 142×58.5×71 |
| Weight | ≤680g |
| Working Temperature | -40°C ~ +60°C |
| Vibration Magnitude | Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each |
Industrial Applications
The EYAS330 thermal imaging module is widely used many areas such
as Remote Monitoring System, Flight Vision Enhancement System,
Multi-sensor Payload etc.
