ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5

    Buy cheap ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5 from wholesalers

    Buy cheap ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5 from wholesalers
    • Buy cheap ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5 from wholesalers

    ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5

    Ask Lasest Price
    Brand Name : JSS-MOTOR
    Model Number : GDZ93*82-3.5
    Certification : CE, ISO9001
    Price : negotable
    Payment Terms : T/T, Western Union,credit card, paypal
    Supply Ability : 30000pcs/month
    Delivery Time : 1-15days
    • Product Details
    • Company Profile

    ER25 Collect Air Cooling Spindle Motor 18000 RPM 220V 4 Bearings 220v GDZ93x82-3.5

    Wood Engraving Air Cooling Spindle Motor 18000RPM 220VAC ER25 Collect 4 Bearings


    We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.


    3.5KW water cooling Spindle motor

    Features:

    High accuracy

    Low noise

    High rigidity

    Long using life


    Datasheet:


    Model NoSpeed (R/Min)Power (KW)Voltage (V)Current (A)Frequency (HZ)Joint of noseLubricationcooling typeBearing TypeWeight (KG)
    GDZ80*73-1.5240001.52205400ER11GreaseAir-Cooling2*7002 2*70026
    GDZ80*73-2.2240002.22206400ER20GreaseAir-Cooling2*7005 2*70028
    GDZ105*102-3.5180003.5380 2207.5 15300ER20GreaseAir-Cooling2*7005 2*70029
    GDZ120*103-5.018000538012600ER32GreaseAir-Cooling2*7008 P4 2*7004 P413
    GDZ93*82-1.5180001.5380 2203.8 6.8300ER20GreaseAir-Cooling2*7005 2*70028
    GDZ93*82-2.2180002.2380 2205.5 10300ER25GreaseAir-Cooling2*7007 P4 2*7002c P48
    GDZ93*82-3.5180003.5380 2208.8 15300ER25GreaseAir-Cooling2*7007 P4 2*7002c P49
    GDZ120*103-4.5180004.53809.5300ER32GreaseAir-Cooling2*7008c P4 2*7004c P413
    GDZ120*103-6.018000638012.6300ER32GreaseAir-Cooling2*7008c P4 2*7004c P415
    GDZ120*103-7.5180007.538017600ER32GreaseAir-Cooling2*7008c P4 2*7004c P416

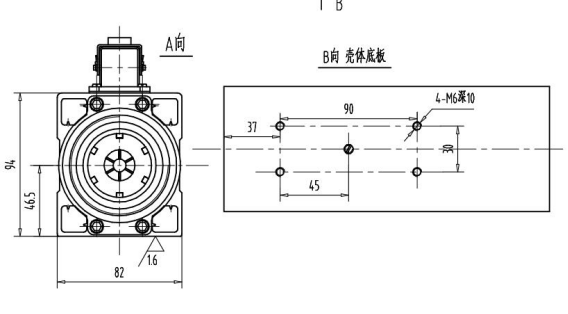

    Dimensions:

    Application:
