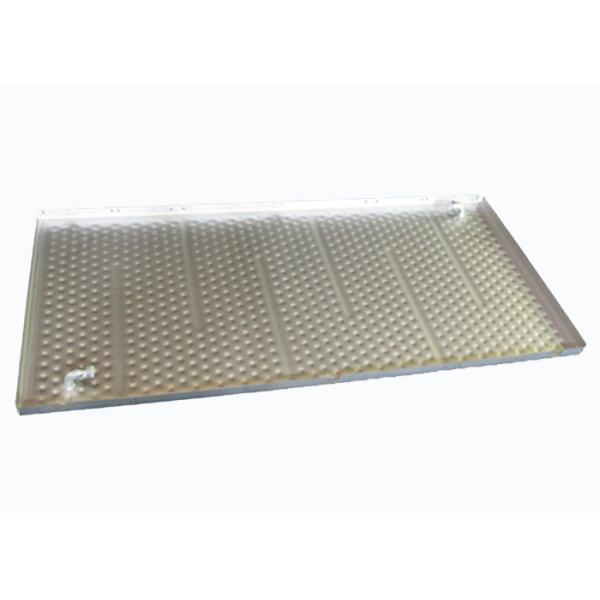

Ss304/316 Pillow Plate For Food Grade Cooling

Manufacturer of high efficiency Stainless Steel Double Embossed Pillow Plate For Food Grade Cooling

Working principle

The plate heat exchangers are made of stainless steel and are ideal for the indirect heating and cooling of process liquids in plants or tanks. They are manufactured to the specific requirements of each customer. They transfer the thermal energy between the heat exchanger medium that flows through the heat exchanger and the process liquid.

The process liquid in the container circulates around the plate heat exchanger and is heated up to the desired working temperature and maintained. If heat is generated in a process (for example by a rectifier or an exothermic reaction), this can be cooled down by the heat exchangers. For heating applications hot water, steam, saturated steam and thermal oil can be used as a heat exchanger medium. Water, salt solutions and glycol are suitable for cooling.

Technical overview

Technology

The Pillow Plate are heat exchanger plates consisting of laser welded two stainless steel sheets. The external circuit of this device is welded in a complete laser way to create a pressure limit. The contour is welded on the edges of the Pillow Plate due to this process a tight part is created.

The “pillow” itself is pumped hydraulically, which guarantees the reliability and safety of the filling process. During inflation, a pressure is applied to the steel sheets, which allows for deformation of the material and the creation of a cavity for the use of a heat exchange medium. After this stage, the plates are formed into cylindrical elements and they are joined with each other, as well as welding of flanges and conical and pressed ends.

Application

1. Inter and After Coolers

2. Condensers

3. Evaporators

4. Heaters

5. Preheaters

6. Reboilers

Advantages
1. Pillow plate welding pattern ensures turbulent flow, creating a higher heat transfer coefficient and low deposition and fouling
2. Can withstand high pressures
3. Serviceable at cryogenic temperatures
4. Minimal pressure drop
5. Can easily withstand cyclic thermal loads
6. Completely laser welded
7. Cost effective

Processing equipment

Certification

Competition

Quality and experience.We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands. My price is not the lowest in China,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definitely superior to other brands.

Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

The company has a national functional office and facilities as a scientific research bureau. The research center now has 5 doctor tutors, 8 professional engineers, 11 senior engineers, 42 engineers and 68 assistant engineers making it a leading specialized research bureau.

The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, CNC fine plasma cutting machine imported from Germany, Laser cutting machine, CNC folding machine, CNC wire cutting and CNC shearing machine, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.

The company's sales network throughout the whole world, with a domestic sales market share of 50%, and exported to the United States, Canada, Germany, Spain, France, Switzerland, Sweden, Denmark, Australia, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Poland, Uzbekistan, Indonesia, Vietnam, Singapore, Malaysia, India, Japan, South Korea, Iran, South Africa, Nigeria, and Rwanda.

The company is an internationally competitive engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other comprehensive, full-process services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.
