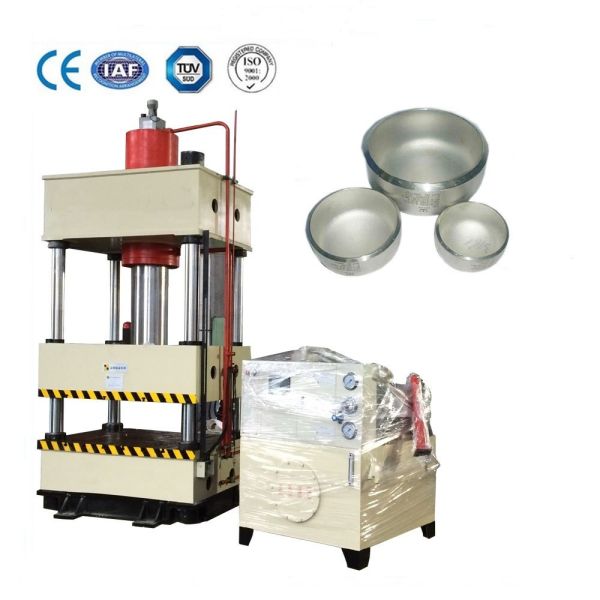

4 Post Hydraulic Press Machine for Kitchen Sink,Deep Drawing Press
for Hand Cover
1. Hydraulic machine that used the hydrostatic pressure to process
metal, plastic, rubber, wood, powder and other products .
2. It is commonly used in the pressing process and press forming
process, such as: forging, stamping, cold extrusion, straightening,
bending, flanging, sheet metal deep drawing, powder metallurgy,
press-fit etc.
3. Significant technical and economic advantages in reducing
weight, reducing the number of parts and the number of molds,
improve the stiffness and strength, reduce production costs, etc.
Parameters:
| Type | Rated pressure | Stroke of slide | Stroke knock-out cylinder | Power |
| Y32-63 | 630KN | 500mm | 200mm | 7.5kw |
| Y32-100 | 1000KN | 600mm | 200mm | 7.5kw |
| Y32-315 | 3150KN | 800mm | 300mm | 22kw |
| Y32-500 | 5000KN | 900mm | 350mm | 44kw |
| Y32-1000 | 10000KN | 900mm | 350mm | 60kw |
| Y32-2000 | 20000KN | 1200mm | 400mm | 145kw |
| Y32-4000 | 40000KN | 900mm | 360mm | 350kw |
For hydraulic Sheet metal deep drawing ,our service for 12months.
1.Personnel training
Free training for about one week.
2. After-sale service
One year warranty.During warranty period,free maintenance service
can be provided.(except man-made faults or damages arising from
irresistible natural factors)
3.Installation
Customers need to pay the commission to our proffessional engineer,
and travel expense is on foreign customer.(Including round ticket
and accommodation cost)
Key features:
 |  |
| Annealed frame | Copper guiding piston plating |
 |  |
| Moving worktable | Eight-sided copper guide |
 |  |
| Hydraulic cushion | Servo controlling System |
Precision
The fast response speed guarantees the opening and closing
accuracy, the position accuracy can reach 0.1mm, and the special
function position positioning accuracy can reach ±0.01mm.
The high-precision, high-response PID algorithm module ensures
stable system pressure and pressure fluctuations of less than ±0.5
bar, improving product quality.
Environmental protection
Noise: The average noise of the hydraulic servo system is 15-20 dB
lower than that of the original variable pump.
Temperature: After the servo system is used, the hydraulic oil
temperature is reduced overall, which enhances the life of the
hydraulic seal or reduces the power of the cooler.
Main Configuration:
| Name | Model | Picture | Advantage |
| HMI | Siemens |
| The life of the button is strictly tested, and it is not damaged by
pressing 1 million times.
Screen and machine fault help, describe screen functions, explain
machine alarms, and help users quickly master the machine usage
|
| Name | Model | Picture | Advantage |
| PLC | Siemens |
| Electronic ruler acquisition line is processed independently, with
strong anti-interference ability
Digital control of the servo drive and integration with the drive |
Servo Driver
|
YASKAWA |
| The overall busbar capacitor is fully upgraded, and the capacitor
with wider temperature adaptability and longer service life is
used, and the theoretical life is increased by 4 times;
The response at 50Mpa is 50ms, the pressure overshoot is 1.5kgf,
the pressure relief time is 60ms, and the pressure fluctuation is
0.5kgf.
|
Servo Motor
| PHASE Series |
| The simulation design is carried out by Ansoft software, and the
electromagnetic performance is superior;Using high-performance
NdFeB excitation, the iron loss is small, the efficiency is higher,
and the heat is smaller;
|
