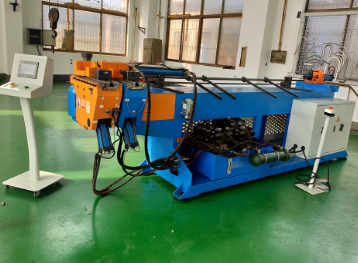

Manual Hydraulic Pipe Bender 3.5 Inches Capacity Mandrel Rebar
Bender
Characteristics
1, the machine adopts PLC control, conversational operation, simple
programmable steps.
2, the freedom of choice, manual, semiautomatic cycle, function of
automatic cycle.
3, mobile pedal switch, with automatic startup, emergency stop,
stop to three kinds of function, high safety.
4, it has a large capacity and cooling cycle system so that the
machine could run more stable.
5, head tube bending, delicate design, provide maximum bending pipe
space.
6, it is undersized, simple and convenient to replace elastic
production.
7, in the machining process of the screen mobile controller tube
bending machining is now worth, still can set single-step
action,half cycle, the cycle.
8, with automatic detection errors and faults, when any abnormal
function of action or any dangerous when there is a machine.
 | PLC Controller Easy operating and working fast |
Electrics Schneider, France brand |  |
 | Mortor Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which
can keeps high efficiency and accurate bending angle. |
Clamping Hydraulic Oil Tube Kejia, China famous brand. |  |
| Water Cooling System |
 |  |
 |  |
Parameters:
Main specification and technical parameters
type | bending ability | bending radius | bending angle | power of motor | |
38NC | Φ38×2.0 | 200 | 185° | 4kw | 12MPa |
50NC | Φ50×2.5 | 250 | 185° | 5.5kw | 12MPa |
63NC | Φ63×4.0 | 300 | 185° | 5.5kw | 12MPa |
75NC | Φ75×6.0 | 350 | 185° | 7.5kw | 12MPa |
| | 400 | 185° | 11kw | 12MPa |
120NC | Φ120×5.0 | 500 | 185° | 15kw | 12MPa |
159NC | Φ159×10 | 550 | 185° | 22kw | 14MPa |
168NC | Φ168×14 | 700 | 185° | 22kw | 14MPa |
219NC | Φ219×18 | 850 | 185° | 30kw | 14MPa |
The Steps of Pipe Bending Machine
Bend tooling (Include: bend die, mandrel, pressure die, clamping
die, wiper die)
