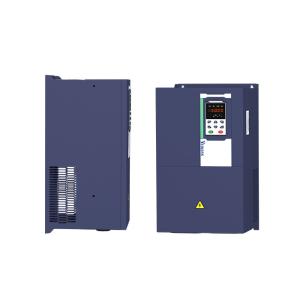

Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology

    Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers

    Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers
    • Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers
    • Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers
    • Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers
    • Buy cheap Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology from wholesalers

    Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VFD500-PV
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15000pcs per Month
    Delivery Time : depend on the order quantity
    MOQ : Negotiable
    • Product Details
    • Company Profile

    Auto-Tracking Solar Water Pump Controller with Advanced MPPT Technology

    110kw 150HP Pump Controller Solar Pumping Inverter with MPPT function


    VEIKONG VFD500-PV series Solar Pumping Inverters

    Power range: 0.75kw-75kw 220VAC
    0.75kw-630kw 380VAC


    1. Advanced MPPT Technology: Maximum MPPT Efficiency: 99%;
    2. Auto-track All Daytime;
    3. Auto dormancy/wake-up, Under-voltage restart;
    4. Support both AC and DC power input (optional);
    5. Water Level Monitoring: dry run protection, overflow protection Record: generated power, pumped water, running time;
    6. The whole water pumping systems running not rely on grid power or battery;
    7. Protection Functions: support low frequency, dormancy, dry-run, over-current, minimum power and other protection functions;
    8. Default Auto-running: auto-running by keypad, auto-running by IoT, auto-running by Terminals;
    9. Excellent Control Performance: make sure the system auto-running with unattended, maximum output frequency is 600hz under VF control;
    10. Intelligent IoT: support GPRS module, for remote control.



    Electrical Specifications and Power degree
    220V380V
    Max input DC voltage450V810V
    DC voltage range150~450VDC300~810VDC
    Normal working DC voltage260V-400V400V-650V
    Recommended input mppt voltage330V550V
    MPPT efficiency>99%
    Rated output voltage1/3-phase 220VAC3-phase 380-480VAC



    Accessories:

    1. GPRS (support 2g/3g/4g internet)



    2. LCD keypad


    VEIKONG high performance VFD LCD display


    3. Output Reactor




    VFD500-PV solar pump inverter picture:


    Mode Range


    Drive model

    Max DC input current (A)

    Rated output current (A)

    Applicable water pump (kW)

    VFD500M-40T00150-PV

    6.1

    3.7

    1.5

    VFD500M-40T00220-PV

    7.1

    5

    2.2

    VFD500M-40T00400-PV

    16.5

    9.4

    4

    VFD500M-40T00550-PV

    23.9

    13

    5.5

    VFD500M-40T00750-PV

    30.6

    17

    7.5

    VFD500-40T00150-PV

    6.1

    3.7

    1.5

    VFD500-40T00220-PV

    7.1

    5

    2.2

    VFD500-40T00400-PV

    16.5

    9.4

    4

    VFD500-40T00550-PV

    23.9

    13

    5.5

    VFD500-40T00750-PV

    30.6

    17

    7.5

    VFD50040T01100-PV

    39.2

    25

    11

    VFD500-40T01500-PV

    49.0

    32

    15

    VFD500-40T01850-PV

    57

    37

    18.5

    VFD500-40T02200-PV

    69

    45

    22

    VFD500-40T03000-PV

    91

    60

    30

    VFD500-40T03700-PV

    114

    75

    37

    VFD500-40T04500-PV

    146

    90

    45

    VFD500-40T05500-PV

    190

    112

    55

    VFD500-40T07500-PV

    237

    152

    75

    VFD500-40T09000-PV

    273

    176

    90

    VFD500-40T11000-PV

    319

    210

    110

    VFD500-40T13200-PV

    389

    253

    132

    220V single phase or three phase level

    VFD500-20T00075-PV

    6.7

    4.5

    0.75

    VFD500-20T00150-PV

    9.9

    7

    1.5

    VFD500-20T00220-PV

    14.1

    10.6

    2.2

    VFD500-20T00400-PV

    22.6

    17

    4

    VFD500M-20T00150-PV

    9.9

    7

    1.5

    VFD500M-20T00220-PV

    14.1

    10.6

    2.2


    Connect wire diagram


    For 220V single phase motor connection

    1: Single phase asynchronous motor wiring method (without starting capacitor):

    Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;


    Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.


    First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ


    For 220V single phase motor connection

    2: Single-phase asynchronous motor wiring method (with capacitor)


    Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
