100% Rubber Factory Price Ship Lifting Marine Salvage Airbags
Marine Salvage Airbags Description
With the toughest pneumatic body, marine salvage airbags are
generally used as temporary transportation device, or other
applications such as shipwreck salvaging, floating bridges, dock
construction, etc.

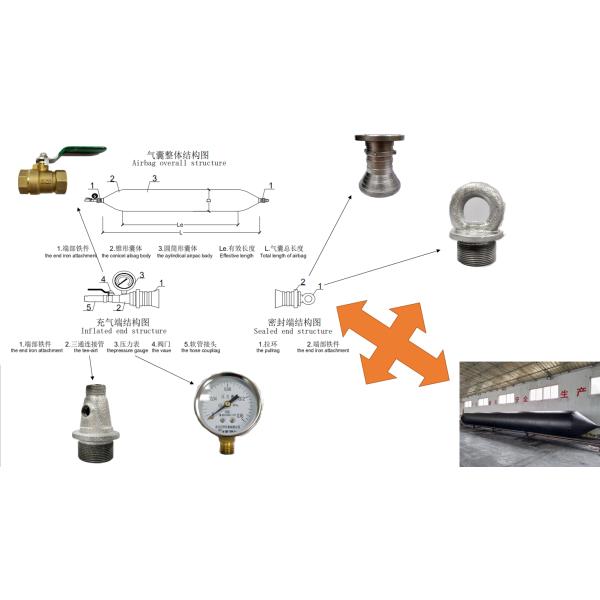

“HENGER” airbag structure are consist of the outer rubber +
synthetic cord reinforced rubber layers.Its shape characteristics:
central body cylindrical + tapered on both ends. Cord layers:
4,5,6,7,8,9,10,11,12 layers.
Marine Salvage Airbags technical specification
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Medium Pressure
(4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
High Pressure
(6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
With numerous combinations of diameters and lengths, marine salvage
airbags have different buoyancy capacities as well as performances.
Here is the buoyancy list of standard marine salvage airbags.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Salvage Airbags features
- Not easy to be affected to wind and wave.
- Less demand of binding.
- Easy to meet the needs of buoyancy ranging from 100 tons to 2000
tons.
- Easy to transport and store while the airbags are deflated.
- Super-high tensile strength owing to its framework material -
heavy-duty synthetic-tire-cord layers with breaking strength about
more than 15,000 N/ 5cm.
- Excellent resistance against abrasion and scratch.
- Low maintenance.
- High flexibility and cost effectiveness.
