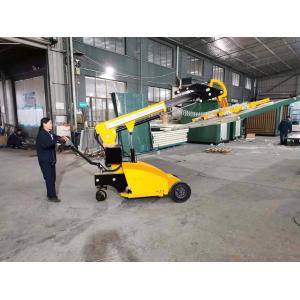

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers
LJXP300
1. Double system control, one vacuum system for working, and one
for alternate;
2. Adopt American THOMAS vacuum pump, Italy METALROTA heavy type
driving wheel, Swiss BUCHER power unit and intelligent
maintenance-free battery,during the use, without air source or
power supply. It can achieve electric walking, lifting ,lowering
taking and releasing air by electrical. Manually rotated 360°in the
vertical side, and manually rotated 90° in the horizontal side.
3. With Japan PANASONC bdigital display vacuum pressure switch and
battery fuel gauge, clearly monitor the safe operation of the
equipment.
4. With vacuum pressure auto supply system to ensure the whole
vacuum system maintained at a relatively constant safety pressure
value, if catch the unexpected power failure, the pressure holding
function can extend the emergency handling time, safer to use.
5. Adjustable design, can be changed the position of the suction
cups and assembled in various ways according to needs, each suction
cup equipped with a separate control valve, can handle glass of
different shapes and sizes.
| Rated load capacity | |
| kg | 300 | 350 | 400 | 500 | 600 |
| Manual rotating |
° | 360° | 360° | 360° | 360° | 360° |
| Lifting height | mm | 3500 | 3500 | 3500 | 3500 | 3500 |
| Battery | V/A | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 |
| Charger | V/A | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 |
| Drive motor | V/W | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 |
| Lift motor | VAV | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 |
| Overall Width | mm | 810 | 810 | 810 | 810 | 810 |
| Overall Length | mm | 2660 | 2660 | 2660 | 2800 | 2800 |
| Driving wheel dimension | mm | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 |
| Pads diameter | mm | 300 | 300 | 300 | 300 | 300 |
| Glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 |
Ⅰ.Warranty : 1 year ( the wearing parts and grinding tools are out
of this range)guarantee the perfect working condition by normally
replacing for wearing
parts,electric parts and some other parts under the proper
operating.
II.service system
1,installation:after the machine arriving customer’s
factory,LIJIANG can send its engineer to the customer’s factory for
machine installation,adjustment and personal training for free.but
the round-trip air ticket,and accommodation will be born by the
customer.(we will support to customer as on line service if we can
not go for service because of COVID-19)
2,warranty period repair:during the warranty period (2years),if
there is a problem with the equipment and the customer request
LIJIANG engineer to repair in the factory. The customer is
responsible for the round-trip air ticket,no maintenance fee and no
apare parts cost (except wearing parts).(we will support to
customer as on line service if we can not go for service because of
COVID-19)
3,out of warranty repair:outside the warranty (2years),if the
equipment appears problems,the customer request LIJIANG to send
engineer to the factory for maintenance. The customer should be
responsible for round-trip air tickets and accommodation.Also
customers need to pay for the LIJIANG.
