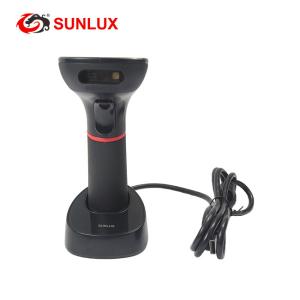

High Level Bluetooth Wireless 2D Barcode Scanner with Charging
Cradle
Product Features
◆ Large capacity battery 2200mAh.
◆ Support update online, more convenient and faster for after-sales
service.
◆ Flexible identify all kinds of 1D and 2D barcode on paper and
screen.
◆ Super decoding ability on all kinds of colored, stained and fuzzy
code.
◆ With memory function, can store 100000 EAN-13 barcode.
◆ Long working time: one full charge support 60000 times scanning.
◆ Ideal solution for warehouse and logistic environment using.
Product Specifications
Performance Parameters
| Image Sensor | CMOS |
| Light Source | White LED (Lighting) RED aiming light |
| CPU | 32bit ARM |
| Resolution | 640x480 pixels |
| Shutter | Global Shutter |
| Scan Speed | 60 fps |
| Scan Accuracy | 3mil |
| Scan Mode | Manual |
| Working Mode | Immediate, Auto, Inventory |
| Scanning Angle | Rotation 360°, Tilt 65°, Deflection 60° |
| Depth of Field | 60-360mm (13mil PCS90%) |
| Decoding Capability | 1D: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial
2 of 5, Matrix 2 of 5, Code93, Code 128, GS1-128,UPC-A, UPC-E, EAN
8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar
Expanded, etc. 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Code. |
| Temperature(Storage) | -40℃-70℃ |
Other Parameters
| Receiver Interface | USB |
| Charging | Contact Charging |
| Charging Time | 4.5 Hours |
| Standby Time | 6 months (Domant state) |
| Using Time | 16 Hours (One time full charging) |
| Battery | Non-removable lithium battery, 2200 mAh |
| Interface | USB, USB-VCP |
| Communication methods | 2.4G Wireless communications/Bluetooth |
| Scanner Size | LxWxH: 168x65x80(mm) |
| Charging Base | LxWxH: 100x70x40(mm) |
| Weight | Scanner: 185g Base: 220g |
| Case Materials | ABS+TPU |
| Input Voltage | DC 5V |
| Working Current | 142mAh |
| Standby Current | 42mAh |
| Indicate | Beep and code reading indicator, power indicator, network indicator |
| Cable Standard | 1.6m |
| Working Temperature | -10℃-50℃ |
| Working Humidity | 5%-95%(no condensing) |
| Storage Temperature | -40℃-70℃ |
| Anti-ambient light interference | 0-5000 Lux(fluorescent), 0-10000 Lux(Sunlight) |
Certificate
Application
Delivery
RFQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire
bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner
manufacturer in China.We are the Top 3 barcode scanner brand in
China.So large quantity will reduce our raw material cost
directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every
product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt
after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are
approved the new high-tech enterprise by the government.Owned many
technical and design patents in different professional fields.
