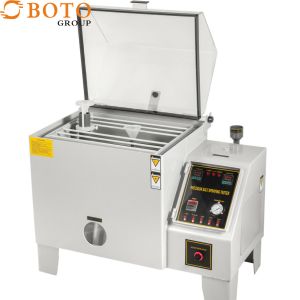

Salt spray corrosion test chamber
Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the
surface of all materials after the rust-proof of painting, coating,
electroplating, anoding and rust-proof of greasing.anti corrosion
treatment for a variety of materials, corrosion resistance of their
products.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001
GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM
D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA -
364-31C
EIA - 364-59 ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to
clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to
ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower
tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Specifications:
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test
method (CASS)50°C±1°C |
| Brine temp | 35°C±1°C 50°C±1°C |
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
Compressed air pressure
| 1.00±0.01kgf/cm2 |
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) |
Test room relative humidity
| 85%RH or more |
| PH | 6.5~7.2 3.0~3.2 |
| Spray method |
Programmable spray (including the continuous spray interrupted
spray)
|
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
FAQ
1. Do you offer after-sales service? How can I ask for that? And
how about the warranty?
Every machine from our factory has a 14-month warranty after
shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of
sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will
try our best to find
the problem by email or skype video chat if neccesary. After
confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no
stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in
urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the
machine?
Yes, of course. We can not only offer standard machines, but also
customized
machines according to your requirements. And we can also put your
logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or
you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is
already installed, all you
need to do is to connect the power cable and start to use. And if
possible, we can also install
your machine at site.
